Summary: A two-staged technique for construction of experimental aneurysms in swine is described. The jugular vein is initially anastomosed to the carotid artery. Spontaneous hypertrophy of the vein is modeled by placing restraining sutures to create a fusiform aneurysm. Subsequent endovascular closure of this aneurysm leaves a sidewall aneurysm pouch. Staging allows maturation of the anastomosis, and the technique provides additional targets for endovascular training. Trial has been successful in three animals.
Experimental saccular aneurysms have for many years been constructed by researchers from vein homografts in a variety of animal types (1). There is no consensus on the optimum species for aneurysm construction, but swine are widely used because they are suitable in size for testing endovascular devices, are ethically acceptable, and have a hematology profile similar to that of humans (2). However, in swine, the free graft lateral wall vein pouch experimental aneurysm is liable to spontaneously rupture during the short term (3) (Y. Murayama, personal communication). This report describes a two-stage procedure to create fusiform or saccular experimental aneurysms that overcomes this problem.
Description of the Technique
The procedure involves anastomosis of the external jugular vein to the carotid artery to establish an arteriovenous fistula (AVF) and delayed endovascular closure of the fistula to create a saccular aneurysm.
Surgical Technique: Stage 1
To establish an AVF, the external jugular vein is exposed and cleaned of surrounding tissues for a length of 5 cm. The cranial end is ligated and the distal exposed portion mobilized to allow it to be swung medially under the sternocleidomastoid muscle. The cervical carotid artery is then exposed and a 4.5-mm arteriotomy made on its anterolateral aspect after the application of temporary vascular clamps. A venotomy is made in the mobilized vein and the two vessels anastomosed side-to-side with a running 60 nylon suture. To assist the anastomosis, temporary stay sutures are placed at the ligated end of the vein and back bleeding is controlled by placing a vascular sling around the caudal part of the vein.
After removal of the arterial clamps and vascular sling, blood flow in the vein and artery distal to the fistula is confirmed visually. Loops of 30 silk sutures are then placed 1.5 cm apart around the draining vein to narrow the vessel above and below the section to subsequently be occluded. The wound is closed in layers (Fig 1).
Endovascular Technique: Stage 2
The second stage procedure is performed 1 to 2 weeks later. The vein inevitably enlarges during the interval so that fusiform dilations develop immediately proximal to each suture. To convert the fistula into an aneurysm, an endovascular balloon (1815 DSB; Target Therapeutics, Inc., Fremont, CA) is placed via a percutaneous femoral puncture between the sutures under fluoroscopic control. Once the fistula is closed, a proximal vein pouch aneurysm remains for testing embolization devices or other studies. Both stages are performed after the induction of general anesthesia. The surgical techniques were developed and performed according to a protocol approved by the University Ethics Panel and the United Kingdom Government Home Office.

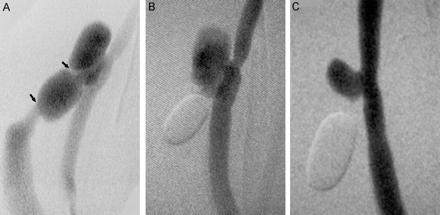

Unilateral AVF were created in three pigs weighing 25 to 30 kg each. Follow-up intra-arterial transfemoral angiography was performed 7, 12, and 18 days later, respectively. All the AVFs were patent with enlargement of the draining vein (Fig 2A). Pouch aneurysms were successfully created after closure of AVF between the restraining sutures in all animals (Fig 2B). One animal was followed without embolization, and repeat angiography after an additional 14 days showed a patent but smaller residual aneurysm pouch (Fig 2C).
The conventional vein graft pouch continues to be used for the construction of in vivo sidewall experimental aneurysms by researchers because the surgical technique is relatively simple. The described modification is intended to improve the reliability of aneurysm production without adding to the surgical complexity. Descriptions of techniques to createexperimental aneurysms that involve arteriovenous anastomosis have been presented. Black (4), in amodification of his original operation, established an AVF and then, after a short period (approximately 60 min) of observation, ligated the draining vein to create a sidewall aneurysm. This was performed so that the pouch could be more accurately sized, based on the principle that matching the sac to neck size made spontaneous thrombosis less likely. Others have exploited the technique to create terminal and bifurcation aneurysms (5). The use of a restraining suture to modify the anticipated enlargement of the draining vein has not previously been described.
The sidewall experimental aneurysm, particularly when created in swine, is liable to spontaneously thrombose as well as rupture (2, 3). Black (4) found that restricting the length of the aneurysm sac (ie, reducing the ratio of sac-to-neck dimensions) reduced the incidence of spontaneous thrombosis, presumably by altering intrasaccular blood flow patterns. Thus, species and aneurysm geometry are both factors. Our modification may also be liable to thrombosis for the same reasons, and more work is needed to assess this possibility.
Increasing the complexity of aneurysm preparation, as proposed, has to be justified. The AVF allows the anastomosis between artery and vein to mature and seems to avoid the danger of spontaneous rupture. The phenomena, which have also been described as occurring in rats (6) but not dogs (7), occur during the first week after surgery (3). As a result, embolization has to be performed early, usually at the time or within 48 hr of surgery. This is not optimum because recently manipulated vessels are more likely to develop spasm during endovascular catheterization. The delay between the two stages is therefore an advantage, and if the model is to be used for training, balloon or coil embolization of the distal vein pouch can be incorporated in a teaching program. For experimentation, the model allows the creation of fusiform aneurysms and has potential for further modification. For example, surgical modifications, such as ligating the caudal rather than cranial end of the vein, would reduce the angle between parent artery and pouch so that a stent could be placed more easily.
The response observed in vessels after surgical construction of AVF has been studied in patients and animals. Involved arteries and veins enlarge in response to increased blood flow. Hypertrophy of vein wall media has been observed as early as 1 week after arteriovenous anastomosis, and by 8 weeks, the media muscle layers appear similar to that of arteries, although no elastic lamina develops (8). The hemodynamic changes associated with establishing and then closing an AVF warrant further study because arteries enlarge in response to increased shear stress but intimal thickening and remodeling occur if blood flow (and therefore shear stress) is then reduced (9). Such vascular changes mean that previously described aneurysm flow dynamics (7) cannot be assumed in this model.
