SUMMARY:Lyme disease has a worldwide distribution and is the most common vector-borne disease in the United States. Incidence, clinical manifestations, and presentations vary by geography, season, and recreational habits. Lyme neuroborreliosis (LNB) is neurologic involvement secondary to systemic infection by the spirochete Borrelia burgdorferi in the United States and by Borrelia garinii or Borrelia afzelii species in Europe. Enhanced awareness of the clinical presentation of Lyme disease allows inclusion of LNB in the imaging differential diagnosis of facial neuritis, multiple enhancing cranial nerves, enhancing noncompressive radiculitis, and pediatric leptomeningitis with white matter hyperintensities on MR imaging. The MR imaging white matter appearance of successfully treated LNB and multiple sclerosis display sufficient similarity to suggest a common autoimmune pathogenesis for both. This review highlights differences in the epidemiology, clinical manifestations, diagnosis, and management of Lyme disease in the United States, Europe, and Asia, with an emphasis on neurologic manifestations and neuroimaging.
Lyme borreliosis is a tick-transmitted multisystem inflammatory disease caused by the spirochete Borrelia burgdorferi sensu stricto, in the United States and Borrelia garinii and Borrelia afzelii in Europe.1,2 With approximately 20,000 new cases reported each year, Lyme disease has become the most common vector-borne disease in the United States.3
The Lyme disease syndrome, manifest as erythema migrans, meningopolyneuritis, and acrodermatitis chronica atrophicans, was first described in the early and mid-20th century in Europe and later recognized in the United States in Old Lyme, Connecticut, in 1976.4,5 Lyme disease was subsequently linked to the recovery of a previously unrecognized spirochete, B. burgdorferi, which is transmitted by the bite of the Ixodes tick (Fig 1). After sustained attachment of the infected tick to the host, the spirochete is transmitted to the human host in the tick salivary secretions.6,7
This review will highlight the differences in the epidemiology, clinical manifestations, diagnosis, and management of Lyme disease in the United States, Europe, and Asia. Emphasis is placed on the diagnosis and clinical spectrum of Lyme neuroborreliosis (LNB), with special attention to the varying features of corroborative diagnostic neuroimaging.
Epidemiology and Clinical Presentation
More than 200,000 cases of Lyme disease in the United States have been reported to the Centers for Disease Control, resulting in a national incidence of 9.7 cases per 100 000 population. The prevalence of Lyme disease varies significantly by geography and has a seasonal incidence (Fig 2A, -B). More than 93% of Lyme disease cases in the United States have been reported in high endemic Midatlantic states, Michigan, and Minnesota.3 Lyme disease occurrence peaks during summer months, reflecting the enhanced transmission by the nymphal tick vectors during May and June. Since Lyme disease became nationally notifiable in 1991, the annual number of reported cases has more than doubled.3
Tick-borne diseases, such as Lyme disease, are dynamic and rapidly evolving in the United States, due in part to climate change.3 B. burgdorferi is a zoonosis maintained at high levels in animals, such as field mice and white-tailed deer.8–11 Song birds and waterfowl also appear to play a major role in the dispersion of infected ticks.9 Borrelia species are transmitted by the bite of infected Ixodes ticks, namely Ixodes scapularis in the United States and predominantly Ixodes ricinus in Europe.3,11–14 Transmission of B. burgdorferi requires at least 24–48 hours of tick attachment.15 Unfortunately, most adult patients do not recall the tick bite because the dominant nymphal Ixodes ticks are very small and often unrecognized when attached to the skin or may fall off after feeding.8
As with other spirochetal infections such as syphilis, Lyme disease occurs in stages, with a wide spectrum of clinical signs and symptoms at each stage. Incubation varies from 3 to 32 days, after which a characteristic enlarging target-like rash, known as erythema migrans (Fig 3), may be evident and accompanied by flulike symptoms of fever, headache, malaise, and myalgias (stage 1).16 After several weeks to months, neurologic abnormalities and cardiac involvement may be seen in 15% and 8% of patients, respectively (stage 2). Migrating very transitory musculoskeletal pain in limited joints, bursae, tendons, muscle, or bone is a common feature of early Lyme disease.17 Within 2–4 weeks after the onset of infection, untreated patients develop a marked cellular and humoral immune response to the spirochete. In stage 3, patients may develop chronic monoarticular or oligoarticular Lyme arthritis, which commonly involves large joints, particularly the knee.18,19
As shown in the Table, worldwide clinical manifestations of Lyme disease vary as a function of different subspecies but invariably include systemic symptoms and involvement of the dermatologic, neurologic, cardiac, and/or musculoskeletal systems.1,8,14,19–21 In the United States, erythema migrans rash, arthritis, and carditis are common presentations. In Europe and Asia, radiculitis and acrodermatitis chronica atrophicans are more common presenting signs. Generalized lymphadenopathy is not a classic feature of Lyme disease, but a Borrelial lymphocytoma may develop at the site of antecedent tick bite. There is a predilection for the ear, nipple, and scrotum.22 A weak association with primary cutaneous marginal zone B-cell lymphoma has been observed in Europe.23
The characteristic erythema migrans rash (Fig 3) is a hallmark of the disease and manifests as an area of expanding erythema >5 cm in diameter. It is commonly raised and sometimes pruritic. This circular or elliptic red area spreads centrifugally, reflecting movement of spirochetes through lymphatics of the skin. Subsequent central clearing gives the appearance of a “target.”8 In some patients, there are multiple lesions, suggesting dissemination of the spirochete. The erythematous rash should not be confused with the small area of erythema around other tick bites, which reflects a host reaction to the bite. The erythema migrans rash is commonly recalled by the patient at the later time of presentation with LNB.8
I scapularis ticks may also transmit other infectious agents, such as Anaplasma phagocytophilum (anaplasmosis) or human granulocytic ehrlichiosis, human monocytic ehrlichiosis, Babesia microti (babesiosis), and, less commonly, Franciscella tularensis (tularemia). Southern tick-associated rash illness (STARI) and Master disease are transmitted by the lone star tick (Amblyomma americanum) in the southern United States and may have a clinical presentation similar to that of Lyme disease due to the transmitted bacterium (Borrelia lonestari).
Diagnostic Tests for Lyme Disease
The diagnosis of Lyme disease should be based on a history of tick exposure, epidemiology, clinical signs and symptoms at different stages of the disease (Table), and the use of serologic tests. Early Lyme disease in a patient with erythema migrans is virtually 100% specific and more sensitive (57%–86%) than serology.24 Adults at risk for tick-borne disease who develop persistent “summer flu” symptoms should increase the clinical suspicion of tick-borne illnesses, such as Lyme disease.
A definitive diagnosis of LNB requires evidence of possible exposure, signs and symptoms of nervous system disease, and supportive laboratory data. Because LNB frequently has clinical overlap with other medical illnesses, there are many obstacles and pitfalls to securing the diagnosis with laboratory confirmation. B burgdorferi can be identified by direct microscopy in tissue biopsies, electron microscopy, and by culture, but these methodologies are not readily available.25 Polymerase chain reaction (PCR) for clinical samples has had a low sensitivity for blood and CSF in Lyme disease but has been useful on synovial fluid specimens in patients with Lyme arthritis.8,25
Most patients with suspected Lyme disease are currently tested for evidence of antibodies against B burgdorferi. However, B burgdorferi has extremely complex antigenic composition, which may vary by host and stage of the infection. Therefore, the use of indirect methods to detect serum antibodies to B burgdorferi, based on a 2-step method by using an initial enzyme immunoassay (EIA) or an enzyme-linked immunosorbent assay or indirect florescent antibody assay, followed by confirmation of a positive or equivocal initial test by immunoblot or Western blot is commonly used.25 The 2-step method has advantages, such as ease of testing, better standardization, and greater diagnostic sensitivity than PCR but lacks sensitivity in early disease.16,24 Current standards for the diagnosis of Lyme disease include a sensitive EIA, followed by Western blot (or immunoblot) with findings of abnormal immunoglobulin M (IgM) (at least 2 bands) and immunoglobulin G (IgG) antibodies (at least 5 bands).
Patients with suspected LNB may have evidence of IgG synthesis against B burgdorferi antigens in the CSF and elevated CSF inflammatory cells (usually lymphocytes, monocytes, or plasma cells), elevated protein, Borrelia-specific intrathecal antibodies, or PCR-detectable Borrelia species antigens (in early cases of Lyme disease). CSF Lyme antibodies (IgM, IgG, and immunoglobulin A) in the absence of inflammatory cells suggest previous infection. Tests developed for the detection of Lyme disease in Europe may not detect high antibody values in infections in the United States and vice versa.16
The use of an EIA with recombinant chimeric proteins, such as the C6 peptide, appears sensitive and has been suggested for use as a single assay, rather than the current 2-tier EIA and Western blot assays. Clearly, further studies are needed to elucidate the advantages and limitations of Lyme disease testing, especially for patients at different stages of neuroborreliosis and in different countries. The use of commercial laboratories that offer Lyme diagnostic tests that have not been professionally validated should be discouraged and prohibited for clinical use.26–28
LNB results when systemic infection with the spirochete B burgdorferi leads to neurologic involvement.6,8,29,30 Approximately 10%–15% of patients with untreated Lyme disease will develop neurologic manifestations.8,14,19,31–34 The enhanced recognition and surveillance for LNB has generated a plethora of recent outstanding clinical review manuscripts.8,14,16,19,31–34
The likelihood of a person developing LNB is dependent on the Borrelia species, geography, recreational habits of the individual, and season of the year. Because the spirochetes are transmitted to human beings only by the bite of infected ticks, individuals who do not frequent endemic areas or have not been in a situation predisposing to an infected tick bite cannot have LNB.8 The presentation of LNB can vary from weeks to months after exposure.
Pachner and Steiner8 observed that LNB inflammation in the nervous system in rhesus macaques was primarily localized to dorsal root ganglia, nerve roots, and leptomeninges. T-lymphocytes and plasma cells were the predominant inflammatory cell markers. Significantly increased amounts of immunoglobulin (IgG, IgM) and complement (C1q) are found in inflamed spinal cords. Spirochetes can be visualized by immunohistochemistry in the leptomeninges, nerve roots, and dorsal root ganglia, but not in the central nervous system (CNS) parenchyma.8 This predisposition correlates well with classic clinical LNB manifested by a predominant meningitis and radiculitis and the rare presence of intra-axial parenchymal brain and spinal cord involvement.8
Borrelia subspecies are responsible for significant differences in the clinical presentations of LNB observed in North America and Europe. European case reports of a painful radiculitis (Garin-Bujadoux-Bannwarth syndrome) and chronic progressive spastic paraparesis suggest a greater neurotropism to B garinii, which has not been found in the United States.35,16
Peripheral Nervous System Manifestations
Peripheral nervous system (PNS) manifestations of LNB are variable and may range from mild-to-severe intermittent sensory symptoms to a typical constant dermatomal painful radiculitis. The latter is a prominent feature of European LNB but is less commonly recognized in the United States. Approximately 85% of European disease presents with Bannwarth syndrome, a painful lymphocytic meningoradiculitis with or without paresis. The pain is frequently sharp, may display nocturnal exacerbations, and may last weeks to months.8 The European presentations are further confounded by a lower incidence of recognized erythema migrans. In the absence of a compressive etiology, Bannwarth syndrome may be a unique clinical hallmark of B garinii LNB. This form of LNB is rarely seen in North American LNB.8,36 Enhancement of spinal nerve roots has been observed on postcontrast T1-weighted sequences in the lower spinal cord and cauda equina more than in cervical cord and roots associated with a lymphocytic meningitis.37
North American LNB usually presents as a subacute meningitis within weeks to months of an antecedent untreated erythema migrans rash.8 Unilateral more than bilateral cranial nerve palsy occurs frequently. The seventh cranial nerve is most frequently involved (Fig 4).32 Lyme disease is an infrequent cause of isolated facial palsy in patients without constitutional symptoms or additional neurologic findings. However, in endemic areas, it may be responsible for ≥25% of new-onset Bell palsy.38,39
There are no neurologic or imaging findings specific for LNB. In the appropriate geographic and seasonal setting, facial diplegia is highly suggestive of LNB as is headache and facial palsy, especially when coupled with a history of erythema migrans. Because erythema migrans may be absent and is usually not present at time of the clinical presentation of neurologic symptoms, suspicion of LNB should be confirmed by serum or CSF antibodies for Borrelia species.8 Sarcoidosis may have a similar neurologic presentation and should be considered in the differential diagnosis.
The role of imaging in the assessment of peripheral Lyme disease is enhanced awareness of LNB in the differential diagnosis of cranial neuritis and/or radiculitis in both endemic populations and in patients with a travel history to endemic areas. To our knowledge, there are no published prospective studies citing the incidence of cranial or radicular nerve enhancement in the clinical setting of Lyme disease. Similarly, the described pattern of contrast enhancement has been restricted to case series.18,40,41 Third, fifth, and seventh cranial nerve enhancements have all been reported (Fig 5).42,43 We have observed enhancement predominantly of the seventh cranial nerve with combined involvement of the fundal tuft and labyrinthine and tympanic segments more than generalized fundal tuft-to-mastoid involvement. The higher incidence of meningoradiculoneuritis (Bannwarth syndrome) in Europe is characterized by specific MR imaging findings of cervical, thoracic, and lumbar nerve root contrast enhancement.37,40,44 Of note is the frequent absence of a correlation between multiple enhancing cranial or radicular nerves and neurologic symptoms.40
Despite the significant increased awareness of LNB and emphasis directed at its diagnosis and treatment, its neuropathology is incompletely understood. Subsequent to the tick bite inoculation, Borrelia species most likely reach the CNS either hematogenously or retrogradely via the peripheral nerves.31 In the United States, dissemination is predominantly hematogenous, leading to meningoencephalitis.31,45 This feature contrasts with the European variant of predominant nerve root involvement (Bannwarth syndrome), wherein dissemination of endemic B garinii and B afzelii mainly occurs through the peripheral nerves. The putative mechanisms for LNB CNS injury include vasculitis, cytotoxicity, neurotoxic mediators, or autoimmune reaction via molecular mimicry.31
Direct CNS symptoms vary widely, ranging from a mild confusional state to severe encephalitis. Cranial neuropathies and motor or sensory radiculoneuritis have their highest incidence in children and adolescents.46 The intrathecal production of anti-B burgdorferi antibodies or a positive PCR are the most reliable indicators of CNS infection. The CSF typically demonstrates a lymphocytic meningitis, with increased protein and increased CSF-to-serum-antibody ratios.
Encephalomyelitis is a very rare complication of borreliosis, with a few reports of progressive and severe courses of the disease.47–51 In most cases of encephalomyelitis, MR imaging is very helpful in assessing the presence of rare tumefactive white matter lesions that may mimic a neoplastic process.47,48,51 Tumefactive lesion biopsies are characterized by microgliosis and spirochetes morphologically compatible with B burgdorferi yet paradoxically without an inflammatory infiltrate.48,52–54 Very rarely, MR imaging has documented reversal of LNB encephalitis subsequent to antibiotic management.49,55 The imaging resolution, however, lagged years behind the rapid clinical response to intravenous antibiotics.
Approximately half of the patients with LNB demonstrate nonspecific abnormal imaging findings predominantly within the frontal cortex white matter arcuate fibers.53,56 Despite successful clinical resolution with antibiotic management, white matter involvement often persists on MR imaging (Fig 6).46

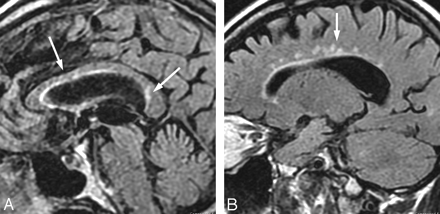

The distribution of involvement including the callososeptal interface fuels speculation as to a secondary autoimmune mechanism with imaging features mimicking primary demyelinating disease (Fig 7).40,46,48,57–65 Similar mechanisms of molecular mimicry and antigen-specific T-cell response have been recognized in both multiple sclerosis (MS) and chronic LNB.66 Yet, T-cell lines demonstrate only weak cross-reactivity between myelin basic protein and B burgdorferi.67
Unlike MS, occult brain and cervical cord pathology in normal-appearing white matter, as assessed by magnetization transfer ratios and diffusion tensor imaging, are infrequent findings in patients with LNB.58 A classic clinical presentation with exposure history, meningitis, CSF pleocytosis, and elevated Lyme disease antibody titers aids in discrimination from MS. However, when the characteristic prodrome of erythema migrans, exposure history, or arthritis is lacking, the multifocal clinical findings on neurologic examination and positive oligoclonal bands and white matter patterns on MR imaging may confuse the diagnosis with that of MS.57,63
Borrelia species are very difficult to culture as exemplified by individual case reports of rare strokelike presentations, wherein brain biopsies merely demonstrated a nonspecific perivascular or vasculitic lymphocytic inflammation.48 In the appropriate clinical and geographic setting, rare instances of LNB vasculitis with ischemic stroke, subarachnoid hemorrhage, and intracerebral hemorrhage have been reported.48,68–75 Single-photon emission CT may provide indirect manifestations of LNB antibiotic-reversible frontal hypoperfusion.65,76,77
Spinal Cord LNB
Spinal cord involvement by B burgdorferi is very rare. As a function of geography, LNB would be a rare differential consideration in the evaluation of transverse myelitis. MR imaging findings with LNB myelopathy are characterized by diffuse or multifocal T2-weighted cord lesions. In contrast to the classic cervical spinal cord MR imaging abnormalities seen in MS, most patients with LNB do not have macroscopic lesions or magnetization-transfer ratio changes.58 Nerve root involvement is best seen on postcontrast T1-weighted sequences.40 Spinal involvement has demonstrated diffuse or multifocal T2-weighted cord lesions and nerve root enhancement on postcontrast T1-weighted sequences (Fig 8).40
Orbital and Ocular Lyme Disease
Rare ocular LNB may occur at all 3 stages of the disease. Uveitis and optic neuritis are the most common ocular complications.78 Conjunctivitis and episcleritis are the most frequent manifestations of the early stage. Neuro-ophthalmic disorders and uveitis occur in the second stage, whereas keratitis, chronic intraocular inflammation, and orbital myositis are seen in the third stage of Lyme disease.79 A nonspecific follicular conjunctivitis occurs in approximately 10% of patients with Lyme disease.39 Direct ocular infection and a delayed hypersensitivity mechanism may be involved at different disease stages.
Borrelial orbital myositis is most probably an immunologically mediated response subsequent to hematogenous dissemination of Borrelia species.80 The clinical and imaging manifestations of orbital myositis Lyme disease closely mimic those of orbital pseudotumor (Fig 9). The differential diagnosis includes lymphoma or possibly thyroid dysorbitopathy. Criteria for orbital and ocular Lyme disease include the lack of evidence of other diseases, occurrence in patients living in an endemic area, positive serology, and, in most cases, response to treatment.39
Thirty percent of Lyme disease cases occur in children.3 The presence of erythema migrans in 89% of children significantly aids the clinical diagnosis.81 It is speculated that the CNS lesions in children represent a spirochete-triggered autoimmune process.82 Headache is the most frequent neurologic symptom; the most common neurologic signs of pediatric LNB include facial nerve palsy (3%–5%) and meningitis (1%). Less common manifestations are sleep disturbance and papilledema associated with increased intracranial pressure.83,84 Ataxia, chorea, myelitis, pseudotumor cerebri, meningitis, and encephalopathy are very uncommon.84–90 Peripheral neuropathies, radiculopathies, and Bannwarth syndrome are other rare pediatric LNB manifestations.
Brain MR imaging findings in pediatric LNB include the presence of prominent Virchow-Robin spaces, T2 bright white matter lesions, pial and cranial nerve enhancement, and treatment-responsive lesion enhancement.18,82
Despite having a greater incidence of LNB, the clinical course in most children is milder and shorter than that reported for adults.89 Facial nerve palsy resolves in 95% of pediatric patients irrespective of treatment.90 The use of doxycycline for the primary therapy of Lyme disease is restricted due to side effects in this population of patients.
Chronic Lyme Disease
The clinical presence of a chronic form of neuroborreliosis subsequent to classic verified objective manifestations and rigorous antibiotic management remains a focus of ongoing conjecture and controversy.34,46,91–96 The inflammatory reaction of neuroborreliosis is postulated by some to be one of the etiologies for a very broad spectrum of neurologic disorders. These include the amyloid deposition of Alzheimer disease, MS, autism, and neuropsychiatric illness.65,95,97–106 The diagnosis of chronic LNB is predicated on characteristic symptoms, specific serum antibodies, CSF pleocytosis, and intrathecal Lyme antibody production. The utility of brain MR imaging in confirming diagnostic suspicion of chronic LNB is very limited, due to the overlap with age-related basal ganglionic and subcortical white matter lesions and persistence subsequent to successful treatment of LNB. Conversely, LNB is a diagnostic consideration in a young patient with subependymal white matter lesions, a history of geographic/seasonal risk factors, and neurologic symptoms.107
LNB is an insidious infectious neurologic disease caused by the spirochete B burgdorferi. The mechanism of neurologic injury probably includes vasculitis, cytotoxicity, neurotoxic mediators, or autoimmune reaction via molecular mimicry. Although there are no neurologic or imaging findings specific for the diagnosis of LNB, an enhanced level of surveillance is required as a function of geography, recreational/travel history of the patient, and season of the year. In the at-risk patient population, LNB should be included in the imaging differential diagnosis of facial neuritis, multiple enhancing cranial nerves, enhancing noncompressive radiculitis, pediatric leptomeningitis with white matter hyperintensities, and symmetric orbital myositis with cranial neuritis. There is an overlap in the CNS MR imaging appearance of LNB and MS; however, unlike MS, cervical cord pathology and occult brain involvement in normal-appearing white matter are infrequent findings in patients with LNB. Further refinements and ongoing research in serum and CSF serologic tests will be required for better detection of active acute and chronic manifestations of Lyme disease.
