MR Imaging and MR Spectroscopy in Rhizomelic Chondrodysplasia Punctata

Case Report

This male neonate was the first child of healthy, unrelated parents. He was born at 38 weeks’ gestation after an uneventful pregnancy by means of forceps-assisted delivery. His weight at birth was 2850 g; length, 47 cm; and head circumference, 33 cm. He had joint contractures, chondrodysplasia, and bilateral cataracts. His limb length was abnormal, and his feet had equinovarus deformity. Typical facial dysmorphism consisting of a broad nasal bridge was noted. Radiographs of the skeleton revealed punctate calcific stippling of joints localized in the shoulders, elbows, ribs, and ankles. Moreover, this patient showed signs of pain to any stimulation and had feeding difficulties that necessitated gastric drip-feeding. At echography, images of his brain showed mild ventricular dilatation. Clinical symptoms and skeletal abnormalities were highly suggestive of RCDP. This diagnosis was confirmed after an assessment of peroxisomal function. Reduced de novo plasmalogen biosynthesis in erythrocytes, a result of a deficiency in DHAPAT, was detected. Other peroxisomal functions, including levels of pipecolic acid and phytanic acid, very-long-chain fatty acid profile, and the activities of alkyl-DHAP synthase and 3-ketoacyl-CoA thiolase, were normal.

When the patient was aged 16 days, a complete MR investigation was performed. This study was approved by the local ethics committee (La Timone Hospital, Marseille, France), and the neonate’s parents provided written informed consent. MR imaging and MR spectroscopy of the brain were performed at 1.5 T with a Vision Plus system (Siemens, Erlangen, Germany). The patient was not sedated. The MR imaging protocol included T1-weighted imaging (700/15 [TR/TE]), T2-weighted imaging (9000/132), and fluid-attenuated inversion recovery (FLAIR) imaging (8000/110/2500 [TR/TE/TI]). MR images revealed that the brain morphology was normal, without any atrophic or edematous feature, in supratentorial areas and in the posterior fossa. Forceps-related extracerebral hemorrhage was present on the right temporal convexity, but this was not clinically important. An encysted cavum septi pellucidi was present; it may have been benign, but this is also a common finding in metabolic brain diseases. The overall myelination of the brain was consistent with the gestational age of the neonate. The most important findings were areas of abnormally high signal intensity on T2-weighted images and abnormally low signal intensity on T1-weighted images of the subcortical white matter in the superior frontal gyrus and the superior parietal lobule in both hemispheres. These areas were symmetric but more pronounced on the left side than on the right (Fig 1). No signal intensity abnormality was found in the cerebellum.

• Download figure
• Open in new tab
• Download powerpoint

Fig 1.

MR images.

A, Axial T1-weighted image of the basal ganglia shows small delivery-related hemorrhage over the temporal convexity and bilateral areas (arrows) of low signal intensity in the white matter of the most anterior portion of the superior frontal gyrus. Hypointense areas are more pronounced on the left. Note the encysted cavum septi pellucidi.

B, Coronal T2-weighted image shows bilateral areas (arrows) of high signal intensity in the superior parietal lobules. Hyperintense areas are more pronounced on the left.

Proton MR spectroscopy was performed by using the stimulated echo-acquisition mode (STEAM) sequence (1500/20; mixing time, 10 milliseconds) in a voxel of interest of 2 × 2 × 2 cm³ in the occipitoparietal white matter. Because of the small size of the regions with affected myelin on T2-weighted images, no spectra in the abnormal white matter could be recorded exclusively. Data processing consisted of zero-filling (2058 points), gaussian filtering (2 Hz), Fourier transformation, zero-order phase correction, and manual baseline correction. The spectra were referenced to creatine (3.04 ppm). The signals from myo-inositol (Ins) and glycine (Gly), choline (Cho), creatine and phosphocreatine (tCr), and N-acetylaspartate (NAA) were integrated. Results were expressed as ratios of the areas for the metabolites (NAA/tCr, Cho/tCr, Ins-Gly/tCr). Age-related curves for the cerebral metabolites, calculated from short-TE spectra published by Kreis et al (8), were used to provide normal values from age-matched control subjects. This comparison was possible because similar methods and conditions were used (STEAM sequence performed in the parietal white matter [1500/30; mixing time, 13 milliseconds]).

The signal amplitude of glutamine and glutamate (Glx) was substantially higher when a TE of 20 milliseconds was used; therefore, the Glx/tCr ratios were not compared. The integration values were not corrected for T1 or T2 effects (8). Two-dimensional (2D) spin-echo spectroscopic images were obtained with a acquisition-weighted 2D chemical-shift imaging (CSI) sequence (1500/135; matrix size, 21 × 21; section thickness, 15 mm; FOV, 240 × 240 mm). Data processing consisted of zero-filling (2058 points), gaussian filtering (2 Hz), Fourier transformation, zero-order phase correction, manual baseline correction, and numeric integration. The metabolic pattern observed in the STEAM spectrum obtained in the normal-appearing white matter of the patient with RCDP at age 16 days (40 weeks’ gestational age) showed that the dominant signal was from Ins-Gly, whereas the NAA level was low relative to that of the other metabolites (Fig 2). Taurine and scyllo-inositol were absent from the STEAM spectrum. When compared with spectra from the literature, the Glx signal amplitude seemed low (8–11).

• Download figure
• Open in new tab
• Download powerpoint

Fig 2.

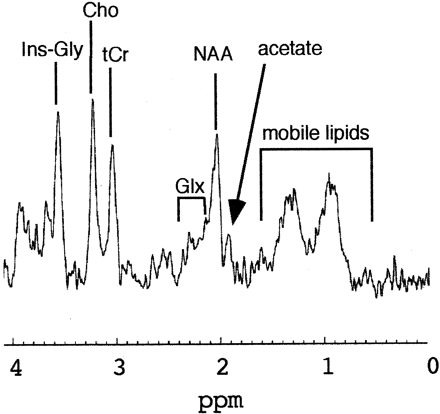

¹H MR spectrum obtained at with the STEAM sequence (TE, 20 milliseconds) in the occipitoparietal white matter. The dominant feature of the spectrum is the high lipid and Ins-Gly content. The presence of an unusual resonance at 1.95 ppm was detected and assigned to acetate.

Levels of mobile lipids were notably elevated. A signal assigned to acetate was also observed (δppm, 1.95). Lactate was not detected on the STEAM spectrum or on spectra recorded with the CSI sequence (TE, 135 milliseconds) in either occipitoparietal white matter or gray matter (Fig 3). The value of Ins-Gly/tCr was significantly higher than in age-matched control subjects, whereas the Cho/tCr value was lower (Table). The CSI spectra obtained in both occipitoparietal white matter and gray matter essentially revealed the presence of a high Ins-Gly content (Fig 2, Table). In both spectra, the signal from aliasing lipids, presumably due to fat in the skull, was detected. The tCr value seemed lowered in CSI spectra in the gray matter, compared with the spectrum (TE, 135 milliseconds) that Grodd et al (11) recorded in the occipital gray matter of a 1-month-old healthy infant. However, because of the variability of tCr concentration in occipital gray matter of newborns (8), no definite conclusion can be drawn.

• Download figure
• Open in new tab
• Download powerpoint

Fig 3.

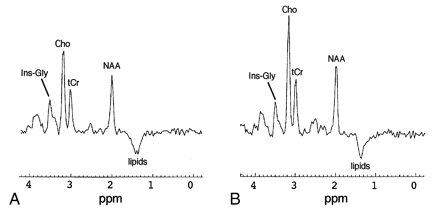

Long-TE (135 milliseconds) ¹H spectra obtained at 1.5 T with the CSI sequence in the occipitoparietal region. The main feature common to both spectra is the high Ins-Gly content.

A, Gray matter.

B, White matter.

In vitro ¹H MR spectroscopy of the blood serum was performed at 400 MHz, according to a method detailed in a previous article (12). An internal standard for chemical shift and concentration, namely 3-(trimethylsilyl)propionate-2,2,3,3-d4, was used. Reference values for blood serum were obtained with ¹H MR spectroscopy in a group of 15 children (age range, 2–15 years) who had been admitted to the hospital with a suspected neurologic disorder; further examination findings confirmed the absence of neurologic disease. (A large-scale investigation of healthy neonates, infants, and children is still needed; this would be helpful to precisely define age-related metabolite concentrations in blood; however, such an investigation is not ethically acceptable.) ¹H MR spectroscopy of the blood serum revealed a high concentration of lactate (3.52 mM; control value, 2.12 mM ± 0.29) (Fig 4). An elevated concentration of creatine (130 μM; control value, 40 μM ± 20) was observed. The glutamine value was within the normal range. The glutamate level was visible, although it is usually not detectable on the proton spectrum of normal serum. Finally, all the ketone bodies, including acetone, acetate, acetoacetate, and β-hydroxybutyrate, were either in the normal range or not detectable (Fig 4).

• Download figure
• Open in new tab
• Download powerpoint

Fig 4.

¹H MR spectrum in blood serum analyzed at 400 MHz shows a high concentration of lactate, creatine, and glutamate, whereas ketone body levels are normal. 1 indicates lactate; 2, myo-inositol; 3, glycine; 4, glucose; 4*, mostly glucose; 5, creatinine; 6, creatine; 7, citrate; 8, glutamine; 9, glutamate; 10, acetone; 11, lysine; 12, alanine; 13, butyrate, valerate, malonate, and succinate derivatives; 14, valine; 15, leucine; 16, α-hydroxybutyrate; 17, 3-(trimethylsilyl)propionate-2,2,3,3-d4; *, traces of glycerol from ultrafiltration.

Discussion

The reports (3, 13, 14) about peroxisomal disorders, such as Zellweger syndrome, X-linked adrenoleukodystrophy, and neonatal adrenoleukodystrophy, mention markedly elevated concentrations of Ins-Gly, Glx, and lactate in affected white matter, which reflect demyelination and glial proliferation. High concentrations of Ins-Gly in normal-appearing white matter have also been described. An increased level of mobile lipids in the white matter is a typical feature of Zellweger syndrome. No lactate was detected on brain spectra, although an increase in blood lactate levels was observed. Secondary hyperlactacidemia is a frequent feature in metabolic disorders, including peroxisomal diseases, but the cause remains unclear. In the current study, the STEAM spectrum recorded in the white matter was characterized by reduced levels Cho-containing compounds and high levels of Ins-Gly and mobile lipids. The high levels of Ins-Gly, as well as the presence of mobile lipids, are common features in the brains of healthy neonates. However, their levels appear substantially increased in the brain spectrum of this patient with RCDP, compared with that of neonates whose brain spectra have been published in the literature (8–10). Since myo-inositol is a glial marker, the increase in Ins-Gly might reflect some activation of glial cells, as observed in other peroxisomal diseases. The high content of brain lipids detected in the patient with RCDP presumably is a result of the deficient DHAPAT. DHAPAT, an enzyme present in all animal cells (except erythrocytes), catalyzes the esterification of dihydroxyacetone phosphate by long-chain acyl CoAs (more than 10 carbons) to form acyl DHAP, the precursor of plasmalogens (15), as follows (Eq 1):

Therefore, the increase in mobile lipids in the white matter of the patient with RCDP could directly reflect the accumulation of long chain acyl CoAs. Very-long-chain fatty acids (22, 24, or 26 carbon atoms) were normal in the patient with RCDP. However we cannot exclude, in view of the ¹H MR spectroscopic findings, the possible accumulation of long chain fatty acids and their acyl derivatives, such as palmitate (16 carbon atoms) and stearate (18 carbon atoms), the preferred substrates for DHAPAT (15). Moreover, a previous study (16) has shown the accumulation of hexadecanol (the fatty alcohol derivative of palmitate) in plasma and cultured skin fibroblasts from six patients with RCDP, which was the result of their impaired incorporation into ether lipids. Another interesting finding is the elevated concentration of the acetate signal in the brain. To our knowledge, this is the first report of increased acetate levels in a neonatal brain proton spectrum, despite the many findings that a milk diet rich in fat provides ketone bodies that the developing brain takes up as primary fuel for respiration and as a carbon source for lipid synthesis (17). However, a ¹H MR spectroscopic study (18) has revealed an increased acetate concentration in the cerebellum of suckling rats as a consequence of a milk diet. Ketone bodies are formed within the liver when fat degradation predominates, and they are supplied to the extrahepatic tissues via blood circulation. Therefore, high levels of blood ketone bodies are found with elevated brain acetate levels in suckling rats (18).

In this patient with RCDP, ¹H MR spectroscopy of blood showed that ketone bodies, including acetone, acetoacetate, and acetate, were not detectable or within the normal range. This result suggests that the metabolite level at 1.95 ppm is not a consequence of the milk diet, but rather, it is produced within the brain. Previous studies (19) have shown that, in cultures, astrocytes can produce ketone bodies from fatty acids. Consequently, the fatty acids that accumulated in brain because of the DHAPAT deficiency could be degraded, and this lead to the formation of acetate. Moreover, astrocytes and oligodendrocytes are known to express acetyl CoA carboxylase (EC 6.4.1.2), the rate-limiting enzyme that regulates fatty acid synthesis and that is also involved in myelination. Long-chain acyl CoAs are potent inhibitors of acetyl CoA carboxylase (15). Thus, the accumulation of long-chain acyl CoAs could result in the inhibition of acetyl CoA carboxylase, thereby diverting acetyl CoA from fatty acid synthesis to acetate formation via hydrolysis by acetyl CoA hydrolase (EC 3.1.2.2), as follows (Eq 2):

No ketone bodies other than acetate have been detected in the brains of this patient with RCDP.

The importance of this increase in acetate levels, whether maturational or linked to DHAPAT deficiency, needs further investigation. Finally, the reduced concentration of Cho-containing compounds in the white matter is presumably a sign of hypomyelination resulting from the lack of plasmalogens for myelin synthesis.
