Hypoattenuation on CT Angiographic Source Images Predicts Risk of Intracerebral Hemorrhage and Outcome after Intra-Arterial Reperfusion Therapy

Methods

We retrospectively reviewed the clinical and imaging findings of 38 consecutive patients treated with IA reperfusion therapy for proximal occlusion of the middle cerebral or basilar artery within 6 hours of symptom onset. Patients who presented with significant neurologic disability with CTA evidence of middle cerebral or basilar artery occlusion and those in whom the clot could be accessed within 6 hours of symptom onset were selected to receive IA reperfusion therapy. Patients who presented within 3 hours of onset and who were eligible for IV tPA were treated with a 0.09-mg/kg bolus (10% based on a 0.9-mg/kg dose), followed by an IV infusion of tPA until the clot was accessed. Six patients were excluded: four who did not undergo CTA, one who was treated with a laser device, and one who died from vessel rupture during treatment.

NIHSS scores were recorded in the emergency department. All patients received nonenhanced CT, immediately followed by CTA of the circle of Willis and skull base. Synchronous whole-brain perfused blood-volume imaging was performed, as is our routine practice (23). Routine nonenhanced head CT was performed by using a helical CT scanner (High-Speed Advantage; GE Medical Systems, Milwaukee, WI) in the emergency department. This was followed immediately by helical scanning during the administration of 90–120 mL of nonionic contrast agent (Omnipaque 300, Nycomed Inc./Nycomed AS, Roskilde, Denmark) at 3 mL/s with a 25-second prep delay. All scans were performed with 140 kVp and 170 mAs. Section thickness was 5 mm for nonenhanced scans and 3 mm for CTA source images.

Treatment included IA tPA alone, IA tPA with IV eptifibatide or abciximab (n = 17), or IA tPA after a partial dose of IV tPA started within 3 hours of symptom onset (bridging therapy, n = 5). A team of experienced interventional neuroradiologists performed IA reperfusion therapy by using established techniques for tPA infusion and mechanical clot manipulation (31). Patients who had residual thrombus after fibrinolytic therapy or who underwent substantial mechanical clot manipulation also received platelet glycoprotein inhibitors to prevent rethrombosis. Pretreatment and posttreatment arteriograms of the involved vessels were obtained, and the elapsed time between stroke onset and recanalization or procedure termination was recorded.

HT was graded according to the method of European Australasian Acute Stroke Study (17) by means of blinded consensus interpretation of any nonenhanced CT images acquired during the first 8 days of the patient’s admission and medical record review. HT was classified according to clinical and radiologic criteria. HI 1 was defined as small petechiae along the margins of the infarct; HI 2, as confluent petechiae in the infarcted area but no space-occupying effect. PH 1 was defined as blood clots in 30% of the infarcted area with some slight space-occupying effect; PH 2, as blood clots in >30% of the infarcted area with a substantial space-occupying effect.

Postprocedural contrast enhancement was differentiated from hemorrhage by means of serial CT examination or, in some cases, MR imaging with susceptibility (32). Intracranial hemorrhage was defined as symptomatic if the patient had clinical deterioration causing an increase in the NIHSS score of ≥4 and if the hemorrhage was likely to be the cause of his or her clinical deterioration (33). However, when edema or hemorrhage as the leading pathology was in doubt, an association of the hemorrhage with the deterioration was assumed. Clinical outcome was defined by using modified Rankin scale (mRS) scores at 3–6 months after initial presentation, as determined by reviewing the hospital’s outpatient stroke database. Our institutional review board approved our retrospective review of all medical and imaging data.

The 3-mm-thick whole-brain CTA source images were evaluated for ischemic regions by identifying areas of relative hypoattenuation. By using a semiautomated software package (Alice; Parexel Corp., Waltham, MA), these ischemic regions of interest were visually segmented (Fig 1) to determine the volume and degree (measured in Hounsfield units) of lesion hypoattenuation. A core lesion was defined as the region of maximal hypoattenuation on a single contrast-enhanced axial section. The mean degree (Hounsfield units) of this lesion was determined. To correct for any within-scan variability, this segmented core was compared with a mirror-image contralateral region of uninvolved tissue (Fig 1). These mirror-image normal regions were matched for gray-white constituents; no CSF spaces, blood vessels, or other volume-averaged tissue were included. Three readers (L.H.S., M.H.L., E.S.R.) who were experienced in the interpretation of stroke CT scans and who were blinded to the patients’ clinical histories, lateralization of symptoms, follow-up imaging and clinical outcomes analyzed the images. All imaging studies were independently interpreted during multiple reading sessions by using optimal window width and center level settings to identify subtle differences between normal and hypoattenuating brain parenchyma (34). Disagreements in ratings were resolved by means of consensus blinded review.

• Download figure
• Open in new tab
• Download powerpoint

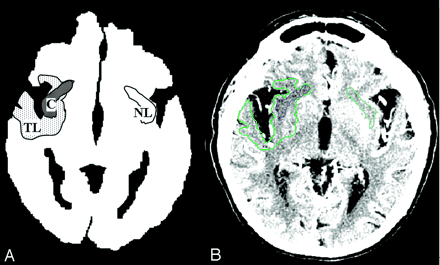

Fig 1.

Schematic (A) and contrast-enhanced (B) CTA source images display region-of-interest segmentation. Single-section total lesion volume is the entire region of hypoattenuation on the section containing the core (TL, green). Single-section lesion core is the region of maximal hypoattenuation in the right insula (C, dark blue), compared with normal mirror-image tissue in contralateral left insula (NL, light blue).

A score for the degree of maximal hypoattenuation score (ΔHU) was calculated on the section containing the region of maximal hypoattenuation by subtracting the mean HU of the core from the mean HU of the contralateral normal tissue. Compared with findings on the CTA source images, hypoattenuating areas on the admission nonenhanced CT images were typically ill-defined, with indistinct borders. Therefore, segmentation of maximally hypoattenuating regions on nonenhanced CT was achieved only by mapping the segmented regions of interest on the CTA source images to corresponding locations on the non-coregistered, nonenhanced CT images. A post hoc ΔHU was then calculated for the nonenhanced CT in the same manner as for the CTA source images.

The resulting ΔHU values were compared between patients with and those without HT by using a two-tailed t test, the Fisher exact statistic, or the odds ratio (OR) with 95% confidence intervals (CIs), as appropriate. A receiver-operator characteristic (ROC) curve was constructed to determine a ΔHU threshold associated with subsequent HT. A cross-validation leave-one-out approach (35) was performed to test the effects of outliers on this threshold. The ΔHU value and the presence of HT were also tested for likelihood of poor clinical outcome (mRS > 2), as in the Prolyse in Acute Cerebral Thromboembolism trial (36).

Results

Thirty-two patients were included in the analysis (Table 1). Thirteen (40%) had evidence of HT on follow-up, and seven had PH. HT was symptomatic in one patient with PH. None had acute pulmonary edema or renal dysfunction due to the contrast agent for CT or conventional angiography, and the scanning procedure did not delay treatment. We found no significant differences between the HT and non-HT groups with regard to relevant clinical and imaging or treatment variables, including timing and/or degree of recanalization. The main finding was that patients with HT had a mean ΔHU on CTA source images greater than that of patients without HT (9.0 vs 6.3, P = .006). However, mean ΔHU values were not significantly different for patients with HT and PH versus those with HT but not PH (9.0 vs 6.9, P = .14) (Table 2).

The ROC curve for ΔHU demonstrated that the operating point of ΔHU >8.1 had 69% sensitivity and 89% specificity for predicting HT after IA therapy (OR = 19.1; 95% CI: 2.9, 125; P = .002, Fisher exact statistic) (Fig 2). Application of this threshold produced two false-positive and four false-negative predictions of HT, the smallest total error in predicting HT for any single threshold (Fig 1). Cross-validation to test for the effect of outliers resulted in seven false-positive or false-negative results (22%), compared with six errors (19%) under the ROC curve–derived threshold. This finding confirmed that no single data point overly influenced the prediction mode. (The optimal threshold remained at ΔHU >8.1 for 31 of 32 omissions and ΔHU >7.9 for one of 32 omissions.) The area under the ROC curve for the accuracy of predicting hemorrhage by using CTA source images was 81% compared with 76% (P = .54) derived for nonenhanced CT images segmented on the basis of the CTA source images.

• Download figure
• Open in new tab
• Download powerpoint

Fig 2.

Relationship between ΔHU of the lesion core and the likelihood of hemorrhage after IA reperfusion therapy. A, ROC curve from which an optimal ΔHU threshold was selected. B, Scatterplot of patients with or without HT after IA reperfusion therapy.

A ΔHU value of >8.1 on admission CTA source images was also predictive of poor clinical outcome at 3–6 months. Patients with ΔHU >8.1 were more likely than those with ΔHU ≤8.1 to have an mRS score of >2 at follow-up (82% vs 38%; OR = 7.3; 95% CI: 1.2, 42.8; P = .03, Fisher exact statistic). The presence of HT in the poor outcome group did not entirely account for this association. Although poor outcomes were more common in patients with HT than in those without HT (69% vs 42%; OR = 3.1; 95% CI: 0.7, 13.7; P = .17, Fisher exact statistic), and in those with PH compared with those without PH (71% vs 48%; OR = 2.7; 95% CI: 0.4, 16.7; P = .40, Fisher exact statistic), these trends were not statistically significant.

Nonenhanced CT images analyzed after the CTA source images in post hoc fashion showed a similar relationship, though the ΔHU value was objectively less conspicuous. On nonenhanced CT images, mean ΔHU was greater in patients with HT than in patients without HT (5.8 vs 3.3, P = .02) (Table 2). The ROC curve for ΔHU constructed from the post hoc segmented nonenhanced CT images revealed that, at an operating point of ΔHU >3.8, sensitivity was 85% and specificity was 68% for identifying patients who developed HT after IA therapy. However, for this dataset, these values were not statistically significant (OR = 2.8; 95% CI: 0.7, 11.6; P = .29). In a paired t test, CTA source images generated greater lesion conspicuity (ie, ΔHU) than the nonenhanced CT images in all patients (7.4 vs 4.3, P < .00001) and in the subgroup who subsequently developed HT (9.0 vs 5.8, P = .0006).

Discussion

Identifying predictors of HT may improve the selection of patients for reperfusion therapy. Although predictors of HT on nonenhanced CT after IV tPA treatment have been described (3, 13–17, 36, 37), little is known about predictors of HT after IA reperfusion therapy. Focal hypoattenuation on CTA source images may reflect a profound degree of ischemia-induced endothelial injury with increased risk of reperfusion hemorrhage (18) or inadequate leptomeningeal collateral blood flow (26, 28, 38). Our data suggested that axial source images are readily acquired and that they provide a visually detectable threshold of hypoattenuation without postprocessing that is a powerful independent predictor of both HT and poor outcome after IA reperfusion. The ROC-curve threshold remained robust under a cross-validation analysis, even in this small cohort.

Regions of abnormality on the nonenhanced CT usually cannot be segmented prospectively because of their ill-defined borders; areas of abnormality are more conspicuous on CTA source images. Previous data from coregistered subtraction analyses suggest that, among patients treated with IA reperfusion therapy, a large fraction of CTA hypoattenuation in the 3–6-hour range is due to change in cerebral blood volume and not tissue attenuation visible on nonenhanced CT alone (39). This increased conspicuity can improve the accuracy of localizing ischemia compared with the accuracy of reviewing nonenhanced CT scans (40). For the group developing HT, regions of hypoattenuation on CTA source images were 55% more conspicuous (by mean ΔHU) than on the corresponding initial nonenhanced CT images; likewise, the derived prediction threshold was 113% more conspicuous. The small threshold of ΔHU >3.8 determined on post hoc analysis of nonenhanced CT images offered one reason why regions of hypoattenuation on nonenhanced CT could not be segmented until CTA source images were viewed. At the low-contrast detectability of current CT scanners (image noise standard deviations of about 0.3%–0.5%, or 3–5 HU) (41), small differences may not be visually appreciated on nonenhanced CT.

More than 20 years ago, investigators recognized that delayed CT after a high-dose infusion of iodinated contrast agent can depict early breakdown of the blood-brain barrier in patients with acute stroke and normal nonenhanced CT scans who presented within 28 hours of symptom onset. Patients with this finding were at high risk for HI and thought to be unsuitable candidates for surgical reperfusion therapy or systemic anticoagulation (42). Ischemic regions that were invisible on scans obtained with their early-generation CT scanners are likely to be evident on images acquired with today’s high-resolution scanners and reviewed by adjusting the window width and center level to display the full DICOM dataset (34). However, the authors demonstrated that they could heighten the sensitivity of conventional CT by using iodinated contrast agent and thus identify patients at increased risk of brain hemorrhage with reperfusion therapies. In this sense, Hayman et al were pioneers who blazed a similar trail to ours more than 2 decades ago (42).

Our study had several limitations. For instance, the method of semiautomated image segmentation by means of visual inspection may have been subject to bias. Scans suggestive of a poor prognosis for reasons other than hypodensity such as presence of tumor may potentially be segmented differently or given increased attention. To anticipate these concerns, segmentation was performed in a blinded manner, and all regions were verified by consensus. In addition, all CTA source images were analyzed before the nonenhanced CT scans were reviewed. Furthemore, our cohort might not have been large enough to demonstrate that PH is a significant risk factor for poor clinical outcome or to detect other potential confounders, given the low frequency of symptomatic HT. Findings in this cohort of patients treated with IA reperfusion therapy could not validate the observation that HI in patients treated with IV thrombolysis may be a marker of early reperfusion (11). In addition, the use of mechanical clot manipulation and, in some patients, the use of IV tPA before or platelet glycoprotein inhibitors after IA tPA may have introduced unaccounted for variability. Because the number of these patients is small, the lack of any subgroup differences may reflect type I error rather than a true lack of effect. Last, many scans were obtained longer than 3 hours after symptom onset, and whether the hypoattenuation threshold determined from this dataset is generalizable to CT scans obtained within 3 hours after symptom onset or to cohorts receiving different patterns of subacute care is unclear. Further studies in a dataset larger than ours are needed to verify whether the relationship between hypoattenuation on CTA source images and HT persists after investigators adjust for these factors in a formal logistic regression.

Conclusion

Notwithstanding these limitations, detecting an 8 HU difference between a region of maximal hypoattenuation on CTA source images and the contralateral normal tissue is straightforward and easily applied at the CT scanner or a low-cost image workstation. This difference may help in identifying patients who are at increased risk of hemorrhage or poor clinical outcome after intra-arterial reperfusion therapy.
