Abstract
BACKGROUND AND PURPOSE: The transmantle sign is a characteristic MR imaging finding often seen in focal cortical dysplasia type IIb. The transmantle sign is typically hyperintense on T2WI and FLAIR and hypointense on T1WI. However, in some cases, it shows T1 high signal. We evaluated the imaging and pathologic findings to identify the causes of the T1 high signal in the transmantle sign.
MATERIALS AND METHODS: We retrospectively reviewed the preoperative imaging data of 141 consecutive patients with histologically proved focal cortical dysplasia. We selected 25 patients with focal cortical dysplasia with the transmantle sign and divided them into groups based on the pathologic focal cortical dysplasia subtype and T1 signal of the transmantle sign. We evaluated the clinical, radiologic, and pathologic findings, including the number of balloon cells and dysmorphic neurons and the severity of gliosis or calcifications and compared them among the groups.
RESULTS: Nine of the 25 patients had a T1-high-signal transmantle sign; the other 16 patients did not. All 9 patients with a T1-high-signal transmantle sign were diagnosed as type IIb (group A). Of the 16 patients with no T1-high-signal transmantle sign, 13 were diagnosed as having type IIb (group B), and the other 3 patients, as type IIa (group C). The number of balloon cells was significantly higher in group A than in the other groups, but there were no differences regarding dysmorphic neurons, the severity of gliosis, or calcifications.
CONCLUSIONS: Approximately 6% (9/141) of this patient series had a T1-high-signal transmantle sign, and all were type IIb. The signal may reflect a rich density of balloon cells. This finding could support the differentiation of subtypes, especially type IIb.
ABBREVIATIONS:
- FCD
- focal cortical dysplasia
- ILAE
- International League Against Epilepsy
- KB
- Klüver-Barrera
- TMS
- transmantle sign
Focal cortical dysplasia (FCD) is a localized cerebral cortical malformation frequently associated with drug-resistant focal epilepsy.1 It is critical to identify the epileptogenic focus when planning surgery. The pathologic features of FCD range from mild cortical dyslamination to more severe forms.2 The typical MR imaging features of FCD include gray-white matter blurring, cortical thickening, white matter hypointensities on T1WI and increased signal intensity on T2WI and FLAIR images, and localized brain atrophy.1,3,4 However, it is sometimes difficult to detect such FCD features when the signal intensity is mild or the abnormality is slight.
We recently treated several patients with FCD who showed the transmantle sign (TMS), which exhibits high signal intensity not only on T2WI and FLAIR but also on T1WI. These T1-high-signal areas matched the areas of the TMS, TMS is characterized by abnormal signal intensity expanding from the deep white matter to the surface and is a distinctive MR imaging finding of type IIb FCD.1,5⇓–7 To the best of our knowledge, only 1 study has reported such atypical signal intensity,8 and no study has examined the etiology of these signal abnormalities. We performed the present study to evaluate the signal intensity of the TMS and its correlation with pathologic findings in patients with FCD.
Materials and Methods
Patients
We retrospectively reviewed the preoperative MR imaging data of 141 consecutive patients with histologically proved FCD who underwent an operation for refractory epilepsy between March 2008 and January 2018 at the National Center of Neurology and Psychiatry, Tokyo, Japan. All enrolled patients were diagnosed on the basis of the histologic classification system proposed by the International League Against Epilepsy (ILAE).9 There were 25 cases of FCD with TMS; 22 cases were type IIb and the other 3 cases were type IIa. The TMS was identified by the following definition: “a markedly hyperintense funnel shaped subcortical zone tapering toward the lateral ventricle was the characteristic finding on FLAIR MR imaging.”10 The present retrospective study was approved by the institutional review board at the National Center of Neurology and Psychiatry Hospital, and the need for patient informed consent was waived.
We investigated clinical data including sex, age at operation, age at the onset of seizure, seizure frequency, surgery site, and postoperative seizure outcome in the 25 patients with FCD with TMS. Postoperative seizure outcome was determined at the patient's last follow-up (≥12 months) using the ILAE criteria.11 For statistical analysis, ILAE outcomes 1 and 2 (seizure freedom or only auras since surgery) were regarded as a good outcome, and ILAE outcomes 3–6, as a poor outcome.
Imaging Analysis
All patients underwent MR imaging in a 1.5T (Magnetom Symphony; Siemens, Erlangen, Germany) or 3T (Achieva, Philips Healthcare, Best, the Netherlands, or Magnetom Verio, Siemens) system with a standard head coil. Sequences included routine structural images: axial T1WI, axial T2WI, and FLAIR images. Spin-echo T1WI was acquired with the following parameters: TR/TE/NEX = 600–613 ms/9.4–15 ms/1, matrix = 201–230 × 183–256, FOV = 25 cm, section thickness = 3–5 mm. Turbo spin-echo T2WI was performed with the following parameters: TR/TE/NEX = 3800–5000 ms/80–95 ms/1–2, matrix = 291–365 × 368–512, FOV = 25 cm, section thickness = 3–5 mm. FLAIR images were acquired with the following parameters: TR/TE/NEX = 9000–12,000 ms/101–120 ms/2500–2700 ms/1, matrix = 179–202 × 256–320, FOV= 25 cm, section thickness = 3–5 mm. Axial and coronal FLAIR images were obtained using the same parameters.
Two neuroradiologists (Yukio Kimura and Yoko Shigemoto with 14 and 10 years of experience in neuroradiology, respectively) independently evaluated all images to assess the signal intensity of the TMS on T1WI, T2WI, and FLAIR images and the density on CT. The differences in evaluations were resolved by consensus.
Pathologic Methods
All specimens were diagnosed by experienced neuropathologists. For all patients, 4% paraformaldehyde-fixed paraffin-embedded tissues of the resection specimens were available. All the examined resected tissues were treated identically, grossly inspected, and measured. After representative small sections were fixed in glutaraldehyde or frozen, the remaining sections were fixed in 4% paraformaldehyde. The specimens were cut to obtain representative tissue slices perpendicular to the cortical surface. The specimens were cut into evaluable sections; 6-μm-thick serial sections were stained with antibodies to vimentin or anti-neurofilament H nonphosphorylated antibody (SMI-32), as well as routine hematoxylin-eosin and Klüver-Barrera (KB) stains. One neuropathologist (A.S.) counted the number of balloon cells and dysmorphic neurons of each case in the FOV with the greatest number at ×200 magnification in the TMS areas using vimentin and SMI-32 stains, respectively, in addition to the KB stain. The severity of gliosis was classified into normal, mild, moderate, and severe. The degree of calcification in the same areas was classified into absence, slight presence, and presence.
Statistical Analysis
We divided the patients into groups based on their pathologic FCD subtype and the T1 signal of the TMS. We compared the groups' ages at the onset of seizure, severity of gliosis, and number of balloon cells and dysmorphic neurons using nonparametric tests, ie, the Kruskal-Wallis or Mann-Whitney U test. Regarding the postoperative seizure outcomes, we analyzed the categoric variables using the χ2 test. A P value < .05 was considered significant. All statistical analyses were performed with SPSS, Version 25.0 software (IBM, Armonk, New York).
Results
The details of the clinical demographics and radiologic and pathologic findings of the 25 patients with FCD with the TMS are summarized in the On-line Table. We divided the patients into 3 groups based on their pathologic FCD subtype and the T1 signal of the TMS. Nine of the 25 patients had T1-high-signal TMS, and the other 16 patients had no T1-high-signal TMS. All 9 patients with T1-high-signal TMS had been diagnosed with FCD type IIb (group A: 3 boys and 6 girls; median age, 7 years; mean age, 6.6 ± 5.9 years) (Figs 1 and 2). Among the 16 patients with no T1-high-signal TMS, 13 patients had been diagnosed with FCD type IIb (group B: 8 males and 5 females; median age, 21 years; mean age, 21.7 ± 14.1 years) (Fig 3) and the other 3 patients had been diagnosed with FCD type IIa (group C: 3 girls; median age, 15 years; mean age, 13.3 ± 8.6 years). There were no patients with FCD type IIa with T1-high-signal TMS.
Case 1, in group A. Axial T2WI (A), coronal FLAIR (B), axial T1WI (C), and CT (D). T2WI and FLAIR images obtained at 23 months of age demonstrate a focal hyperintensity area from the bottom of the sulcus to the lateral ventricle, which represents the transmantle sign of FCD in the left parietal lobe (arrows, A and B). The T1WI also shows hyperintensity in the same area (arrow, C). The CT image shows high density (arrow, D). E, Photomicrograph shows many balloon cells (arrowheads), stained with vimentin (magnification ×200). Scale bars: 50 μm.
Case 2, in group A. Axial T2WI (A), coronal FLAIR (B), axial T1WI (C), and CT (D). T2WI and FLAIR images obtained at 13 months of age demonstrate focal hyperintensity in the white matter of the right frontal lobe, representing the TMS (arrows, A and B). The T1WI also shows hyperintensity in the same area (arrow, C). The CT scan shows high density (arrow, D). E, Photomicrograph shows many balloon cells observed (arrowheads), and they are stained with vimentin (magnification ×200). Scale bars: 50 μm.

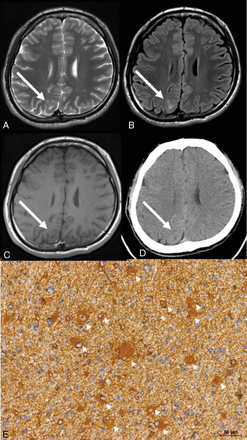

Case 17, in group B. Axial T2WI (A), axial FLAIR (B), axial T1WI (C), and CT (D). T2WI and FLAIR images obtained at 23 years of age demonstrate focal hyperintensity in the subcortical area extending to the ventricle of the right abnormal parietal gyrus, indicating the TMS (arrows, A and B). T1WI shows low intensity in the same area (arrow, C). CT shows low density (arrow, D). E, Photomicrograph shows a few balloon cells (arrowheads), stained with vimentin (magnification ×200). Scale bars: 50 μm.
Among the 3 groups, there were no significant differences in the age at seizure onset (P = .24) or the seizure outcomes (P = .54). In group A, 8 patients had good postoperative seizure outcomes (ILAE class 1: seven patients, and class 2: one patient), and the remaining (ninth) patient had a poor outcome (ILAE class 5). In group B, 10 patients had good outcomes (ILAE class 1: nine patients, and class 2: one patient) and the other 3 patients had poor outcomes (ILAE class 5). All 3 patients in group C had good outcomes (ILAE class 1).
On the T2WI and FLAIR imaging, all patients showed hyperintensity in the TMS. On CT, high density was observed in the TMS in all 9 patients of group A. The hyperintense areas on T1WI matched the areas of high density on CT scans. Among the patients in groups B and C, though areas of slightly high density in the TMS were observed on CT in 5 patients, their densities were lower than those in the group A.
Our pathologic analysis revealed significantly more balloon cells in group A compared with group B with both KB (P = .007) and vimentin (P = .011) stains (Fig 4), but there was no significant difference concerning dysmorphic neurons among the 3 groups in KB (P = .69) and SMI-32 (P = .52) stains (Fig 5). There was no significant difference in the severity of gliosis among the 3 groups (P = .93). Microcalcification was observed in 4 patients in group A, but in 3 of the 4 patients, the microcalcification was imperceptible. Microcalcifications were absent in groups B and C.
The greatest number of cells counted in the FOV at ×200 magnification. Group differences in the number of balloon cells with KB (A) and vimentin (B) stains. The boxplot shows the minimum, first quartile, median, third quartile, and maximum. Outliers are shown as small circles. The number of balloon cells is significantly higher in group A versus group B in both stains. There were no balloon cells in group C (data not shown).

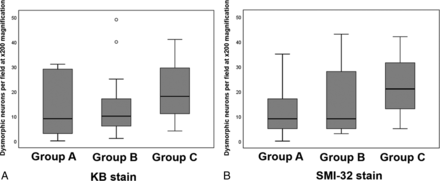

The greatest number of cells counted in the FOV at ×200 magnification. Group differences in the number of dysmorphic neurons in KB (A) and SMI-32 (B) stains. The boxplot shows the minimum, first quartile, median, third quartile, and maximum. Outliers are shown as small circles. No significant difference in the cell numbers is shown by both stains.
Discussion
We reviewed the clinical, radiologic, and pathologic findings in a series of patients with T1 high signal in the TMS. To the best of our knowledge, this is the first attempt to identify the etiology of the T1 high signal of the TMS by investigating the imaging and pathologic findings. The results of our analysis demonstrated that there were significantly more balloon cells in the T1-high-signal group than the non-T1-high-signal group, but no evidence of differences regarding dysmorphic neurons, the severity of gliosis, or calcifications. We therefore speculate the following: 1) The density of the balloon cells may be associated with the T1 high signal, and 2) our findings could help diagnose the FCD subtype, more specifically FCD type IIb.
According to the current ILAE classification system,9 the pathology of FCD is classified into 3 types: Type I has isolated cortical dyslamination, type II has dysmorphic neurons with or without balloon cells in addition to cortical dyslamination, and type III occurs alongside another lesion (eg, hippocampal sclerosis, tumors, or vascular malformations).5,9 The histopathologic hallmark of type IIb FCD is the presence of balloon cells, which have an enlarged cell body with eosinophilic cytoplasm and are present in all layers but tend to concentrate in the upper layers and white matter.12,13 Several studies indicate that balloon cells are not epileptogenic.14,15 Although the exact role of balloon cells remains obscure, several studies have found evidence of an increase in the mechanisms leading to glutamate clearance in areas containing balloon cells, thus reducing the spread of epileptogenic activity.16,17 Balloon cells could play a protective and/or antiepileptic role.12
The TMS is the main radiologic landmark of FCD type II, but it is more frequently detected in patients with type IIb than type IIa and is the only MR imaging feature that can be used to accurately identify type IIb.1,5⇓–7 The etiology of the signal changes in the TMS is thought to be some combination of gliosis, hypomyelination or dysmyelination, neuronal heterotopia, and balloon cells,6,11 though an exact correlation has yet to be verified. The TMS is typically hyperintense on T2WI and FLAIR and hypointense on T1WI.18 However, some patients have shown T1 high signal. Our present pathologic study reveals that there are more balloon cells in the T1-high-signal group, but there are no significant between-group differences in the number of dysmorphic neurons or the severity of gliosis. Our results suggest that the density of the balloon cells may be associated with the T1 high signal. In addition, there was no T1 high signal in the other types of FCD. The T1 high signal in the TMS may thus be regarded as evidence of type IIb.
Eltze et al19 reported patients with FCD who had shown T1 hyperintensity during the first year of their lives, but it was difficult to identify them by the process of myelination. The degree of myelination may be an additional factor to evaluate the MR imaging signal intensity of FCD in infants. In our study, only 1 patient was younger than 1 year of age (case 9 in group 1). However, she had undergone an operation at 5 months, and we could not observe the signal changing appearances.
Compared with other FCDs without the TMS, the presence of the TMS indicated a high likelihood of a seizure-free outcome.20,21 Detecting these lesions during a preoperative examination is important for surgical decision-making and improving postoperative outcomes.1,22,23 If the preoperative MR imaging indicates type IIb, a favorable prognosis can be expected after surgery.
Several research groups have reported the hyperintensity of FCD and cortical tubers of tuberous sclerosis on T1-weighted images with magnetization transfer contrast.8,24⇓–26 Although Kadom et al8 did not describe the type of FCD, these T1 hyperintensities with magnetization transfer contrast may reflect the presence of balloon cells. The cortical tubers also show MR imaging findings, known as the radially oriented white matter band, that are similar to the TMS of FCD type IIb.27⇓–29 Magnetization transfer contrast is a technique for improving image contrast in MR imaging, based on the difference in magnetic field–induced frequencies between mobile free water protons and macromolecular bound protons.26,30 Pinto Gama et al25 noted that the density of cells and calcium deposition may also play a role by causing shortening of the water T1, leading to a decrease in the effectiveness of signal suppression by magnetization transfer contrast. However, in the present study, there were few cases with sparse calcifications in the pathologic findings, and the association between high density on CT and calcifications was weak. We therefore suspect that the high density on CT was due not to calcification but rather to a high cell concentration, especially of the balloon cells themselves. In addition, even in cases without calcifications in pathologic findings, T1 high signal was observed, and we consider that calcifications were not necessarily associated with T1 high signal in our patients.
This study has some limitations. First, the sample size of T1-high-signal FCD cases was small (9 patients). However, we were able to detect significant relationships with the balloon cell concentration. Many cases should be examined to test this result. Second, the internal structure of the balloon cell has not been clarified. Further pathologic studies are needed to validate this information.
Conclusions
Some cases of FCD type IIb have T1 high signal in the TMS. The density of balloon cells may be associated with this phenomenon, and this information would be useful for differentiating FCD subtypes and contributing to the diagnosis of FCD and its subtypes, especially type IIb.
