4D-DSA: Development and Current Neurovascular Applications

Development and Evolution of 4D-DSA

In 1997, Fahrig et al³ used an image intensifier to reconstruct a 3D vascular volume from projections acquired with 2 C-arm rotations, leading to broad acceptance of the 3D-DSA technology once flat panel detectors became readily available.⁴ The increased size and high spatial resolution of these detectors (<0.2-mm pixel side length), in combination with intra-arterial contrast injections, allowed volumetric depiction of vascular abnormalities showing anatomic relationships to adjacent structures and visualization of implanted devices.^6,7 Today, in clinical practice when diagnosing and treating complex cerebrovascular abnormalities, a combination of 2D- and 3D-DSA is used to depict the complex vascular abnormalities (3D) and analyze the dynamic information about the passage of contrast medium from arteries into veins (2D). In most instances though, the topography of these conditions is such that this combination still does not remove the limitations caused by vascular overlap. For example, while both 2D and 3D images typically provide excellent information about the major arteries and veins supplying an AVM, neither allow detailed assessment of the angioarchitecture of the nidus of the AVM, eg, the presence of intranidal aneurysms or direct AVFs.

Methods aimed at mitigating this limitation by combining the benefits of both 2D- and 3D-DSA have been proposed since the early 2000s. Schmitt et al⁸ developed a method encoding bolus arrival time from 2D-DSA images onto a static 3D-DSA, but each acquisition was acquired separately. Copeland et al⁹ furthered this approach by encoding the contrast passage from biplane 2D-DSA onto a 3D-DSA. Mistretta¹⁰ and Davis et al⁵ combined the above approaches, altering the 3D-DSA contrast injection protocol to that of 2D-DSA and started injections at the beginning of a 3D acquisition. Very quickly, this protocol was modified so that the contrast medium was injected 0.5–1 second after the start of an acquisition. Encoding this temporal information about the passage of a contrast bolus on the 3D-DSA allowed reconstruction of fully time-resolved 4D-DSA. This method became commercially available in 2015 (Siemens). Although the availability of a time-resolved 3D volume diminishes some of the problems caused by vascular overlap, it does not completely resolve this issue. During the rotational acquisition of a 4D-DSA, some degradation of temporal information may occur in any of the 2D projections, ie, when a ray from the source passes through opacified vessels at the same time on its way to the detector.

4D-DSA Acquisition Technique and Injection Protocol

The acquisition technique of a 4D-DSA is generalized into 2 steps: 1) a C-arm rotational acquisition without contrast injection (mask), and 2) a second acquisition with contrast injection (fill). 4D-DSA is designed to allow visualization of the passage of contrast through the 3D vasculature for inspection. For facilitating this process, a contrast-injection protocol was designed to start at the same time or just after (0.5–1 second) the start of the fill acquisition and to stop before the end of the rotation, thereby visualizing both inflow and outflow of blood/contrast. Consideration should be given to the type of vascular abnormality, eg, AVM or stenosis, as well as the patient’s cardiac status, eg, normal or abnormal stroke volume.

Accurate geometric reconstruction of the vasculature for 3D-DSA requires that projections be available from about 200° of rotation. However, to ensure the accuracy of both the geometric and temporal information of a 4D-DSA, it was necessary for the angular range to be increased to at least 260° so that different parts of the vasculature, ie, arteries and veins, are all opacified for the required 200°. In research and clinical practice, a 6- or 12-second 260° fill acquisition during contrast injection is used in accordance with a noninjection mask acquisition. The setup for contrast delivery is the same as for 2D- and 3D-DSA, with appropriate arterial access, catheters, and contrast medium. For a 4D-DSA, the contrast injection is started simultaneous with or just after the beginning of the fill acquisition, depending on the site of injection (close to or further away from the relevant vasculature). Contrast is usually injected for 8 seconds so that each vascular segment in the arterial phase and early venous phase is filled for about 200°. If the rate (milliliters/second) of a contrast medium injection is too high, there will be downstream reflux of the contrast bolus. It has been shown that this phenomenon may prevent mixing of the bolus with the nonopacified blood arriving with each systole, thereby obscuring the pulsatile waveform normally seen in the time concentration curves of the 4D projections. Without the pulsatile information from the contrast bolus mixing with nonopacified blood between systole and diastole, it would be impossible to quantify blood flow using 4D-DSA data.^11,12 Ruedinger et al¹² reported that an injection protocol of 75% contrast (iopamidol, Isovue 370; Bracco) injected at 2.5 mL/s for 8 seconds satisfies these requirements by producing strong pulsatility in the area of interest.

After a 4D acquisition (both mask and fill acquisitions) and reconstruction, a user has a 4D-DSA vascular volume of 512 × 512 × 396 voxels with resolution of 0.5 mm. It may be viewed on the software as either a movie or interactively using a slider bar to progress through the sequences of timeframes (X Workplace; Siemens). Cropping, thresholding, and dual-volume visualizations of implanted devices are available to the user as well.

4D-DSA Reconstruction Workflow

The reconstruction of 4D-DSA uses the data from a conventional 3D-DSA rotational acquisition (fill run subtracted from the mask run) to create the vasculature geometry. This is then merged with the temporal information from the 2D-DSA projection images generated in the same acquisition. Figure 1 illustrates an overview of the automated reconstruction workflow. First, a thresholded 3D-DSA reconstruction, called a constraint volume, is generated (geometry). Next, for each acquisition angle (and time point), the measured 2D-DSA image is divided by a digital forward projection of the constraint volume. The resulting ratio images describe temporal changes in x-ray intensity, relative to the constraint volume, due to the passage of contrast medium (temporal information). Finally, the temporal information, encoded in the sequence of ratio images, is individually back-projected onto the 3D constraint volume, producing a temporal sequence of 3D images. Each foreground voxel within the constraint volume is corrected by a function based on the ray-dependent ratio.

• Download figure
• Open in new tab
• Download powerpoint

FIG 1.

4D-DSA reconstruction workflow. Starting at the upper left, projection images from a rotational acquisition are reconstructed into a 3D-DSA. Following a threshold approach, a constraint volume is generated, which provides the geometric information for the 4D-DSA. Combining the constraint volume with the angle-specific temporal information results in the volumetric, time-resolved 4D-DSA volume.

The result is a fully time-resolved 3D-DSA image (4D-DSA) of the anatomy of interest. The frame rate is identical to the acquisition frame rate (commonly 30 frames/second), and the total number of volumes is identical to the number of projection images in a rotation. For example, a 12-second acquisition rotation would have 304 frames over 260°, yielding >1 frame per degree of rotation. Ultimately, a 4D-DSA vascular volume allows viewing of the contrast bolus passage at any time and any desired viewing angle.

Clinical Applications of 4D-DSA

In many instances, noninvasive imaging, ie, CTA or MRA, is sufficient to establish the presence and type of cerebrovascular anomalies; however, the superior spatial resolution of 2D- and 3D-DSA enhances the user’s ability to understand some of the important details of the vascular anatomy. After 4D-DSA became commercially available in 2015, it further improved this capability.

AVMs and AVFs.

In a preclinical study, Sandovol-Garcia et al¹³ compared the utility and accuracy of 4D-DSA with that of 2D- and 3D-DSA in a canine model. Angiographic data of the 3 techniques, showing both the intracranial and extracranial vasculature, were scored by 3 experienced neuroradiologists for the technique’s ability to do the following: 1) display a series of previously determined vascular segments, 2) determine the direction of filling of the segment (antegrade or retrograde), and 3) determine the technique they would choose for performing the previous 2 tasks. In 74% of the datasets, 4D-DSA was judged to be superior to the other methods. It was also reported that the use of the 4D-DSA reconstruction alone would have resulted in a very meaningful reduction in both contrast dose and radiation exposure.¹³

Later reports by Sandovol-Garcia et al¹⁴ and by Lescher et al¹⁵ demonstrated the value of 4D-DSA in the diagnostic evaluation of AVMs. In the 2017 study of Sandovol-Garcia et al,¹⁶ the angioarchitecture from 2D, 3D, and 4D-DSA acquisitions of 6 AVMs was compared by 4 experienced observers. By consensus, the 4D-DSA studies provided the best ability to display the presence of intranidal aneurysms, fistulas, venous obstructions, and the sequence of filling and draining, all of which are important for diagnosis.¹⁶ Figure 2 illustrates the difficulty of 3D-DSA in viewing the angioarchitecture of the nidus due to vessel overlap and the improvement when viewing the nidus with the combined spatial and temporal features of 4D-DSA. Lescher et al¹⁵ also evaluated the utility of 2D, 3D, and 4D reconstructions for displaying these same features. In both AVMs (n = 19) and AVFs (n = 9), the 4D-DSA studies provided the best detail of the angioarchitecture at the fistulous point or the nidus. Figure 3 illustrates the improved viewing of an AVF with time-resolved 4D-DSA.

• Download figure
• Open in new tab
• Download powerpoint

FIG 2.

Three views from 3D-DSA of a patient with an AVM supplied by the lenticulostriate arteries (upper row). While the anatomic detail is excellent, vascular overlap in and around the nidus makes it impossible to see the angioarchitecture and to understand the sequences of blood flow into and out of the AVM. Early timeframes of the 4D-DSA (lower row) show details of the AVM nidus that are not visible on 3D-DSA. Note the small aneurysm on one of the lenticulostriate arteries (white arrow). No intranidal aneurysms are seen. Although the 4D-DSA images provided here are at 1 angle (angle B), these images may be viewed at any desired angle at any time of bolus passage.

• Download figure
• Open in new tab
• Download powerpoint

FIG 3.

Three 4D-DSA images from early timeframes (t1–t3) of the filling of an AVF located along the intracranial surface of the petrous bone (blue circle). t1 shows several small arteries supplying the AVF (blue arrow). In the image from t3, acquired less than a second later, these arteries are obscured. This information is helpful when trying to plan an endovascular approach to this abnormality.

In a single-center study of 26 AVMs, Lang et al¹⁷ confirmed the ability of 4D-DSA to show details of anatomy, as well as 2D images; additionally, nidal features of the AVMs were most clearly seen in the 4D reconstructions. On the basis of their observations, they postulated that the availability of the 4D application would decrease the number of 2D studies needed, therefore decreasing the radiation dose.

In addition to diagnosis, 4D-DSA added value over conventional techniques when used to create a treatment plan for AVMs for gamma knife radiosurgery (stereotactic radiosurgery). Chen et al¹⁸ compared the original treatment plans based on MR imaging and 2D-DSA with ones based on 4D-DSA in 20 consecutive patients with AVMs (n = 12) or AVFs (n = 8) who were scheduled for gamma knife radiosurgery. The radiosurgery treatment plans were overlaid, and the registration errors were compared. The determined area for treatment created with 4D-DSA was generally smaller and more clearly demonstrated the AVM nidus (in instances when it was supplied by multiple arteries) in comparison with the areas from conventional treatment plans. This study suggests that the use of 4D-DSA for AVM radiosurgery could reduce the target volumes of irradiation, which may result in a decrease in the adverse effects of vascular radiosurgery.¹⁸

Intracranial Aneurysms.

Endovascular treatment is now an option for most intracranial aneurysms. For safe and effective treatment, it is essential that both the relationship of an aneurysm to the parent artery and to adjacent branches and the characteristics of the aneurysm be precisely defined. The accuracy of this information depends on the imaging technique chosen and the reconstruction tools used. Figure 4 illustrates a case with an intracranial aneurysm in which the spatial and temporal data obtained from 4D-DSA provide the ability to see the aneurysm in an unobstructed view, which is not possible with 3D-DSA modalities.

• Download figure
• Open in new tab
• Download powerpoint

FIG 4.

An anterior communicating artery aneurysm viewed from the anterior, posterior, and cranial-caudal positions of a 3D-DSA (upper row) and a 4D-DSA (lower row). The branches that obscure the view of the aneurysm (yellow circle) in the 3D-DSA are not yet filled in the 4D-DSA image, making the aneurysm neck and its relationship to adjacent branches visible. This information aids in the endovascular treatment of intracranial aneurysms.

As discussed earlier, the geometry obtained from 3D-DSA is used to create a 4D-DSA, so the geometric accuracy of the 3D-DSA reconstruction is essential for achieving accurate measurements from a 4D-DSA. Studies have shown the ability of 3D-DSA to accurately display the dimensions of intracranial vasculature, as well as intracranial aneurysm volume, with satisfactory precision.^19,20 In an effort to further improve the precision of dimensional measurements obtained from 4D-DSA, Ruedinger et al²¹ evaluated the impact of various commercial reconstruction parameters on the accuracy of these measurements. Vessel reconstructions were performed using edge enhancement or Hounsfield unit kernels and normal or smooth image characteristics. Aneurysm volume, surface area, dome height, and minimum and maximum ostium diameter measurement were made on 5 patient-specific 3D printed aneurysm models. The actual dimensions were determined from microCT measurements of the models, and it was concluded that reconstruction parameters had very little impact on aneurysm and vessel measurements.²⁰ A subsequent article by this same group showed that when using a proper protocol for the injection of contrast medium, both the spatial information of 3D-DSA (geometry) and the temporal information of 4D-DSA (flow) remained highly accurate.¹² Additionally, Sandoval-Garcia et al¹⁶ also found complete agreement in diagnostic characteristics in images from 2D-, 3D-, and 4D-DSA datasets. For endovascular treatment of aneurysms, it is critical that precise information on vessel sizes, ostium characteristics, and parent artery branch relationships be available.

Quantification of Blood Flow from 4D-DSA

The temporal information contained in 4D-DSA is sufficient to quantify blood velocity, and when combined with accurate vessel measurements, blood flow can be quantified.^12,23 Flow derivation is based on identifying the time needed for a contrast bolus to pass between 2 points; this movement is captured in the time-density curves (TDCs) of 4D-DSA (also called time-concentration curves). Each voxel contains a TDC depicting bolus inflow, steady state, and bolus outflow. As the bolus moves through the vasculature, cardiac-derived oscillation in a ratio of contrast medium to nonopacified blood is observed. This oscillation superimposes on the TDCs as a quasi-sine wave (Fig 5). Investigating the TDCs shows a position-dependent temporal shift between the contrast-arrival time and the phase of the contained quasi-sine curve. Figure 5 illustrates a simplified schematic of how blood flow is quantified using 4D-DSA.

• Download figure
• Open in new tab
• Download powerpoint

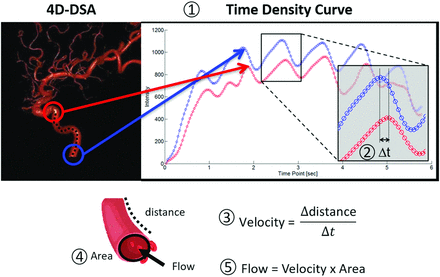

FIG 5.

Simplified schematic of how flow is quantified using 4D-DSA: 1) Variations in the contrast density are due to the mixing of contrast with nonopacified blood at and downstream from the injection site with each cardiac cycle. These variations can be tracked in a time density curve (TDC) at any point along the vessel. 2) The time it takes the contrast bolus to arrive at a more distal location is quantified by the time-shift between the peak of the curves (Δt). 3) Velocity is calculated by knowing the distance and time between 2 points in the vasculature. 4) The area of the vessel is calculated from the 4D-DSA geometry. 5) The flow is quantified using the velocity and area.

This effect, as first identified by Waechter et al,²⁴ can be used to derive velocity and flow of the liquid. Waechter et al used a 2D representation of the contrast agent over a given vessel segment and fit virtual maps representing a given velocity and flow to the measured data. For measuring the data, the vessel centerline and radii are first determined in 3D. Subsequently, a 2D flow map is determined showing the TDC of a given centerline voxel along the y-axis and displaying each centerline voxel in directional order. Then, by means of mathematic models of the blood flow, contrast injection, and fluid mixture and propagation, a simulated flow map is determined. The final step is error minimization between the simulated and measured flow map.

Wu et al²⁵ applied a shifted least-squares analysis to time curves in a given phantom vessel segment. The vessel centerline and radii of each vessel segment of interest were determined at discrete intervals, and TDCs were recorded. Each TDC was shifted with respect to all other TDCs, and the temporal shift yielding the minimum least-squares difference was computed. A velocity for the segment was determined from temporal shift and spatial distance information with a relative root-mean-square error of 11% and a Pearson correlation coefficient with phase contrast (PC)-MR imaging of r = 0.835.²⁵

Shaughnessy et al²⁶ derived a similar shift from the phase signal in the Fourier domain to determine liquid velocities in a given 3D-printed, patient-specific vessel segment. In each vessel segment, the vessel centerline, discrete distances, and radii were determined. TDCs for each vessel centerline point were Fourier-transformed, and the fundamental frequency and associated phases were determined. The temporal shift of the TDC between 2 vessel centerline points was determined as the phase shift at the TDC fundamental frequency. This work yielded velocities within 10% of the ultrasonic flow meter and was extended to include a mass-preservation constraint to establish preserved flow across multiple bifurcations.^26,27

In a study of AVMs, Lin et al²⁸ showed the feasibility of measuring blood velocity in the angiography suite using 4D-DSA. The study used a similar approach by taking the pulsatile information of the TDC and determining the peak-to-peak distance in ICA segments. With the temporal shift, as well as distance and vessel diameter determined, the contrast/blood mixture velocity and flow were derived. Evaluation of hemorrhagic-versus-nonhemorrhagic AVMs showed an increased velocity and flow in the hemorrhagic group, albeit the results were not statistically significant. To our knowledge, it is not known how vascular overlap may affect the accuracy of flow quantification. All methods mentioned above have been evaluated in noncommercial implementations of 4D-DSA algorithms and are currently not clinically available.

Limitations and Helpful Solutions

As is the case for 3D-DSA, patient motion, improper timing of the contrast injection, and involuntary vessel and muscle movement can all degrade the spatial and temporal information contained in a 4D-DSA reconstruction. If the injection sequence is used appropriately and no patient motion occurs, Lang et al²⁹ showed that the geometry of the vasculature from a 4D-DSA is as reliable as conventional 3D-DSA. As briefly mentioned, vascular overlap may occur in ≥1 of the 2D projections acquired during a rotational acquisition, which may have an impact on some of the temporal information in the 4D volume of the projection. Nonetheless, the added temporal dimension in a 4D-DSA means that the clinician is no longer forced to view vasculature solely at the time of maximum contrast enhancement, as is the case in a conventional 3D-DSA. By selecting different timeframes of bolus passage and viewing angles for image display, one can separate vascular structures that fill at different time points and that would have previously been obscured by overlap on many 2D projections and 3D images.

As previously mentioned, there is a distinct overlap phenomenon, arising at specific 2D projection angles during the acquisition when 2D images of superimposed contrast-enhanced arteries and veins are captured. Although these structures may be spatially separated in the 4D-DSA reconstruction and not visually overlapped, there is a possibility that, in some voxels, there may be mixing of temporal information at certain time points. The degree to which this affects flow quantification has not, to our knowledge, been defined. To resolve the ambiguity, Huizinga et al³⁰ detailed, in a recent publication, the use of a novel reconstruction algorithm that uses a logical flow constraint. The algorithm enforces a connectivity between filling vasculature segments, removing erroneous early filling in distal vasculature by requiring a previously filled connected vessel.

From the perspective of a clinician using 4D-DSA for diagnosis and treatment-planning, postprocessing techniques have been found useful to further reduce the limitations caused by vascular overlap. One example is when vessels from one vascular territory are, in many viewing angles, superimposed on those from another territory, eg, MCA territory on ACA territory. We refer to this type of overlap as “superimposition,” which is different from the vascular overlap that occurs when vessels in such close proximity can only be separated by viewing 4D timeframes acquired before the overlapping vessels are opacified. Superimposition can usually be resolved by simply cutting out the part of the 4D volume that is not of clinical interest, eg, the ACA territory when trying to view the details of an MCA aneurysm.

Another limitation of using a 4D-DSA volume occurs when a user thresholds an entire 4D volume. The optimal threshold for arteries will not be the same as those for veins because of the differences in contrast concentration and volume. Likewise, the optimal threshold for large arteries and veins will be different from that for small arteries or veins. By using the postprocessing tool to cut out a small ROI from the 4D volume and then thresholding it, one can view the anatomic and blood flow features; this outcome is not possible when thresholding the entire 4D volume at once.

Summary

4D-DSA, first developed in 2013, is a commercially available angiographic technique that provides the user with a fully time-resolved 3D volume of the vasculature. The ability to see any desired viewing angle at any desired time of bolus passage adds benefit over conventional 2D- and 3D-DSAs for cerebrovascular diseases.
