Research ArticlePediatrics

A Diagnostic Algorithm for Posterior Fossa Tumors in Children: A Validation Study

C.A.P.F. Alves, U. Löbel, J.S. Martin-Saavedra, S. Toescu, M.H. Tsunemi, S.R. Teixeira, K. Mankad, D. Hargrave, T.S. Jacques, C. da Costa Leite, F.G. Gonçalves, A. Vossough and F. D'Arco
American Journal of Neuroradiology May 2021, 42 (5) 961-968; DOI: https://doi.org/10.3174/ajnr.A7057

Abstract

BACKGROUND AND PURPOSE: Primary posterior fossa tumors comprise a large group of neoplasias with variable aggressiveness and short and long-term outcomes. This study aimed to validate the clinical usefulness of a radiologic decision flow chart based on previously published neuroradiologic knowledge for the diagnosis of posterior fossa tumors in children.

MATERIALS AND METHODS: A retrospective study was conducted (from January 2013 to October 2019) at 2 pediatric referral centers, Children's Hospital of Philadelphia, United States, and Great Ormond Street Hospital, United Kingdom. Inclusion criteria were younger than 18 years of age and histologically and molecularly confirmed posterior fossa tumors. Subjects with no available preoperative MR imaging and tumors located primarily in the brain stem were excluded. Imaging characteristics of the tumors were evaluated following a predesigned, step-by-step flow chart. Agreement between readers was tested with the Cohen κ, and each diagnosis was analyzed for accuracy.

RESULTS: A total of 148 cases were included, with a median age of 3.4 years (interquartile range, 2.1–6.1 years), and a male/female ratio of 1.24. The predesigned flow chart facilitated identification of pilocytic astrocytoma, ependymoma, and medulloblastoma sonic hedgehog tumors with high sensitivity and specificity. On the basis of the results, the flow chart was adjusted so that it would also be able to better discriminate atypical teratoid/rhabdoid tumors and medulloblastoma groups 3 or 4 (sensitivity = 75%–79%; specificity = 92%–99%). Moreover, our adjusted flow chart was useful in ruling out ependymoma, pilocytic astrocytomas, and medulloblastoma sonic hedgehog tumors.

CONCLUSIONS: The modified flow chart offers a structured tool to aid in the adjunct diagnosis of pediatric posterior fossa tumors. Our results also establish a useful starting point for prospective clinical studies and for the development of automated algorithms, which may provide precise and adequate diagnostic tools for these tumors in clinical practice.

ABBREVIATIONS:

AT/RT
atypical teratoid/rhabdoid tumor
LR
likelihood ratio
NPV
negative predictive value
PA
pilocytic astrocytoma
PPV
positive predictive value
WNT
wingless
SHH
sonic hedgehog

In the past 10 years, there has been an exponential increase in knowledge of the molecular characteristics of pediatric brain tumors, which was only partially incorporated in the 2016 World Health Organization Classification of Tumors of the Central Nervous System.1 The main update in the 2016 Classification was the introduction of the molecular profile of a tumor as an important factor for predicting different biologic behaviors of entities which, on histology, look very similar or even indistinguishable.2 A typical example is the 4 main groups of medulloblastoma: wingless (WNT), sonic hedgehog (SHH) with or without the p53 mutation, group 3, and group 4. Although they may appear similar on microscopy, these categories have distinct molecular profiles, epidemiology, prognosis, and embryologic origin.3

Subsequent to the publication of the 2016 World Health Organization Classification, further studies have identified even more molecular subgroups of medulloblastoma with possible prognostic implications4 and also at least 3 new molecular subgroups of atypical teratoid/rhabdoid tumor (AT/RT)5 and several subgroups of ependymoma.6 MR imaging shows promise as a technique for differentiating histologic tumors and their molecular subgroups. This capability relies on not only various imaging characteristics but also the location and spatial extension of the tumor, evident on MR imaging, which can be traced to the embryologic origin of the neoplastic cells.5,7⇓⇓-10

One approach to the challenge of identifying imaging characteristics of different tumors in children is to use artificial intelligence. Yet despite this exciting innovation, correctly identifying the location of the mass and its possible use as an element for differential diagnosis still requires the expertise of an experienced radiologist. Previously, D'Arco et al11 proposed a flow chart (Fig 1) for the differential diagnosis of posterior fossa tumors in children based on epidemiologic, imaging signal, and location characteristics of the neoplasm. The aims of the current study were the following: 1) to validate, in a retrospective, large cohort of posterior fossa tumors from 2 separate pediatric tertiary centers, the diagnostic accuracy of that flow chart, which visually represents the neuroadiologist's mental process in making a diagnosis of posterior fossa tumors in children, 2) to describe particular types of posterior fossa lesions that are not correctly diagnosed by the initial flow chart, and 3) to provide an improved, clinically accessible flow chart based on the results.

FIG 1.
FIG 1.

Predesigned radiologic flow chart created according to the literature before diagnostic accuracy analysis. The asterisk indicates brain stem tumors excluded from the analysis. Double asterisks indicate relative to gray matter. Modified with permission from D'Arco et al.11

MATERIALS and METHODS

Setting and Subjects

A retrospective, cross-sectional study from 2 large tertiary referral pediatric hospitals in 2 countries (Children's Hospital of Philadelphia, United States, and Great Ormond Street Hospital, London, United Kingdom) was performed on the basis of patient records spanning January 2013 to October 2019 in accordance with the Strengthening the Reporting of Observational Studies in Epidemiology (STROBE) statement.12 This study was conducted under 2 research protocols (IRB No. 18–015588 and CA Reg No. 2504), approved by the respective institutional review boards at each center.

Subjects were identified by electronic search of brain MR imaging reports and the electronic health record systems. The following terms/diagnoses were used for the search: “brain tumor,” “posterior fossa tumor,” “brain neoplasia,” “posterior fossa neoplasia,” “cerebellar tumor,” “cerebellar neoplasia,” “medulloblastoma,” “AT/RT,” “atypical teratoid/rhabdoid tumor,” “ependymoma,” “pilocytic astrocytoma.” Results were screened, and subjects younger than 18 years of age with a histologically and genetically confirmed diagnosis of posterior fossa tumor, according to the 2016 World Health Organization classification, were selected.2 Subjects with no available preoperative MR imaging study, those with low-quality MR imaging studies, and those without diffusion imaging on their MR imaging study were excluded. Subjects with tumors located primarily in the brain stem were also excluded.

Variables

Age at first MR imaging (before histologic/pathologic confirmation of the tumor), sex, and histologic and genetic/molecular results were obtained from the electronic medical records. Two experienced pediatric neuroradiologists independently reviewed these initial MR imaging studies at each institution (C.A.P.F.A., A.V., F.D., and U.L.), blinded to the final diagnosis. Imaging characteristics were evaluated following a step-by-step numeric flow chart, with a digit assigned to each level and subsequent branch, providing a flow chart and a 3-digit numeric sequence code for each diagnosis end point to be used in the analysis (Fig 1). The flow chart took into account the following: 1) tumor location, 2) ADC map signal intensity in comparison with gray matter, 3) internal architecture, 4) contrast enhancement, and 5) the patient's age. The flow chart was designed before the initiation of the study; it was based on a review on the topic by D'Arco et al.11 Before starting the blinded analysis of the cohort, one of the readers (C.A.P.F.A.) performed a pilot evaluation using the first 8 cases from each institution (16/148; 10.8%) to confirm the applicability of the flow chart multiple weeks before the formal evaluation.

Statistical Analysis

Visual inspection of the histogram showed non-normal distribution, which was confirmed with the Shapiro-Wilk test (P < .001) for all numeric variables. Categoric variables are described with percentage and frequency, and numeric variables, with median and interquartile range. Statistical analysis was performed using R statistical and computing software, Version 3.5.3 for Windows (http://www.r-project.org/).

Diagnostic accuracy of the flow chart was verified through a 2 × 2 contingency table and calculation of sensitivity, specificity, positive predictive values (PPV), and negative predictive value (NPV). To estimate accuracy and effect size, we estimated 95% CIs for sensitivity, specificity, PPV, and NPV. The diagnostic accuracy analysis was performed for each diagnosis, with molecular/histologic diagnosis as the criterion standard comparison. Because flow chart numeric sequences 312 and 311 of the predesigned flow chart would not provide a single unique final tumor molecular diagnosis, we later adjusted the sequences according to the most prevalent diagnosis. The modified flow chart reflects these adjustments. Last, we recalculated diagnostic accuracy tests on the basis of the adjustments for these 2 flow chart modifications. The clinical applicability of findings was further explored with positive and negative likelihood ratios (LR+ and LR–, respectively), and on the basis of changes in probability from the LR described by McGee.13 Clinical applicability to rule in diagnosis was considered if the 95% CI of LR+ was above 10. Clinical applicability to rule out diagnosis was considered if the 95% CI of LR– was below 0.5.

RESULTS

Histologic Diagnosis and Demographics

One hundred forty-eight subjects were included. The median age at MR imaging was 3.4 years, (interquartile range = 2.1–6.1 years), and the male/female ratio was 1.24. Fifty-four (36.5%) patients had a histologic diagnosis of medulloblastoma, 56 (37.5%) had pilocytic astrocytoma (PA), 12 (8.1%) had AT/RT, and 19 (12.8%) had ependymoma. Medulloblastomas were also subclassified according to molecular subtypes including 14/54 (26%) SHH; 7/54 (13%) WNT; 5/54 (9%) group 3; 9/54 (17%) group 4; and 19/54 (35%) group 3 or 4 (separation of groups 3 and 4 was not always easily possible). Seven cases (5%) had a diagnosis of other tumors not covered by the flow chart (2 low-grade diffuse astrocytomas not otherwise specified, 1 hemangioblastoma, 2 gangliogliomas, 1 case of Langerhans cell histiocytosis, and 1 meningioma). Agreement between readers at each institution was very high (κ = 0.96 for both institutions, P < .001). Because both institutions had almost perfect agreement, we did a pooled analysis without differentiating per institution. The same diagnosis using the predesigned flow chart was reached for 86% of the cohort. In the 14% of cases in which the same diagnosis was not reached by the 2 readers, disagreement was solved through consensus between the readers.

Diagnosis Using the Flowchart

By means of the predesigned flow chart (Fig 1), the most common diagnosis was PA (numeric sequence 123) (n = 53, 36%), followed by medulloblastoma all subgroups (numeric sequence 312) (n = 35, 24%), ependymoma (numeric sequence 323) (n = 17, 11%), medulloblastoma SHH (numeric sequence 111) (n = 10, 7%), medulloblastoma group 4 or AT/RT (numeric sequence 311) (n = 5, 3%), AT/RT (numeric sequence 411) (n = 7, 5%), ependymoma (numeric sequence 423) (n = 7, 5%), desmoplastic medulloblastoma SHH (numeric sequence 112) (n = 6, 4%), desmoplastic medulloblastoma SHH (numeric sequence 313) (n = 3, 2%), and medulloblastoma WNT (numeric sequence 412) (n = 5, 3%). Figure 2 and Table 1 show the statistical results of the sensitivity, specificity, PPV, and NPV of the flow chart per diagnosis.

FIG 2.
FIG 2.

Diagnostic accuracy of a predesigned radiologic flow chart to identify different types of cerebellar tumors.

View this table:
Table 1:

Statistical analysis of the radiologic flow chart to discriminate different types of cerebellar tumors

In cases that followed sequence 311 (medulloblastoma group 4 or AT/RT), 3/5 (60%) were AT/RT, 1/5 (20%) was an ependymoma, and 1/5 (20%) was a medulloblastoma group 4. This finding suggested that sequence 311 catches more tumors in the AT/RT category than in medulloblastoma group 4, so we recalculated the diagnostic accuracy tests considering both 311 and 411 as AT/RTs. As can be appreciated in Fig 2 and Table 1, diagnostic accuracy for cases of AT/RT improved when combining sequences 311 and 411. Of the 35 cases under sequence 312 (medulloblastoma all subgroups), 26/35 (74%) were confirmed as group 3 or 4 (3 confirmed as group 3, eight confirmed as group 4, and 15, as group 3 or 4). The remaining cases under sequence 312 were 3/35 (9%) SHH, 5/35 (14%) WNT, and 1/35 (3%) AT/RT. Figure 3 shows the diagnostic accuracy of sequence 312 to identify medulloblastoma SHH, WNT, and group 3 or 4. For this sequence, the NPV and specificity were higher than the PPV and sensitivity for all other sequences. Table 2 shows the LR analysis per diagnosis and the recommended sequences for the diagnosis. After our analysis and on the basis of Table 1 results, we modified the predesigned flow chart with more precise categorization of the types of tumor. We recommend this new flow chart (Fig 4) for the diagnosis of posterior fossa tumors in children.

FIG 3.
FIG 3.

Diagnostic accuracy of sequence 312 (all types of medulloblastomas) of the predesigned radiologic flow chart to identify different types of medulloblastomas.

FIG 4.
FIG 4.

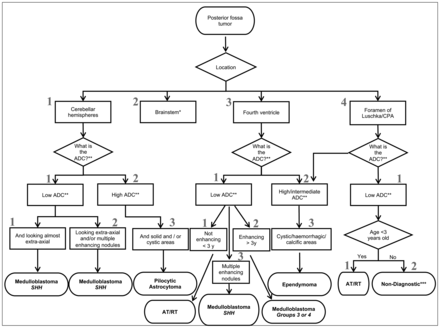

Modified radiologic flow chart (flow chart 2) after diagnostic accuracy analysis. The asterisk indicates brain stem tumors excluded from the analysis. Double asterisks indicate relative to gray matter. Triple asterisks indicates low PPV and sensitivity for any particular molecular/histological group of tumor.

View this table:
Table 2:

Likelihood ratio analysis of the radiologic flow chart to discriminate different types of cerebellar tumors

Some examples of differentiating posterior fossa tumors from our cohort, diagnosed on the basis of the new flow chart here presented, can be seen in Figs 5 and 6.

FIG 5.
FIG 5.

Differential diagnoses in cases of posterior fossa tumors originating from the cerebellar hemisphere. Axial T2WI (A) and axial ADC map (B) show SHH medulloblastoma (flow chart 2, number 111) in a typical peripheral location within the cerebellar hemisphere due to its origin from ganglionic cell precursors. Note very low ADC values (ie, diffusion restriction). Axial T2WI (C) and axial ADC map (D) show the typical appearance of a pilocytic astrocytoma (flow chart 2, number 123) originating from the cerebellar hemisphere. Note the typical nodule and appearance of cysts and much higher ADC values in comparison with the medulloblastoma.

FIG 6.
FIG 6.

Differential diagnoses in posterior fossa tumors involving the foramen of Luschka and cerebellopontine angle. Axial T2WI (A) and ADC map (B) in a child with ependymoma (flow chart 2, number 423). Note the presence of internal vessels (arrow) and intermediate ADC values. Axial T2 (C) and ADC maps (D) in a 2-year-old boy with a AT/RT (new flow chart number 411). Note very low values of ADC, suggesting an embryonal tumor and peripheral cysts.

DISCUSSION

The 2016 introduction of the new classification of brain tumors based on histologic and molecular characteristics dramatically changed the management of pediatric brain tumors.1,2,14,15 Tumors with similar histologic appearance being related to completely different cellular populations with different molecular profiles and different embryologic origins implies that they develop along different cellular paths. Thus, tumors that were previously considered as a single group can now be differentiated on imaging by location, age, and/or the patient's signal characteristics, resulting in a more accurate prognosis.16⇓-18

In light of the crucial role of molecular profiling in tumor diagnosis and management, we found that the predesigned flow chart was very useful for categorizing and better understanding pediatric brain tumors. The importance of molecular profiling in the pediatric neuro-oncology clinical practice was first studied in medulloblastomas but is now recognized for ependymomas, low-grade astrocytomas, AT/RTs, and all previously classified primitive neuroectodermal tumors.6,18⇓⇓⇓-22

Yet, since the 2016 classification update, several newly identified radiologic markers have been proposed as surrogates for the molecular diagnosis. The role of these radiologic markers may be limited by the constant evolution of the molecular characterization of brain tumors.8,11 However, we believe that a standardized method of evaluating images, such as the proposed flow chart, may facilitate increased diagnostic accuracy.

The initial predesigned diagnostic flow chart has proved reliable and consistently accurate in this validation study, with an almost perfect agreement between 2 blinded neuroradiologists at 2 different institutions. Our results showed high coefficients of specificity and NPV for all diagnoses included in the predesigned flow chart. Sensitivity coefficients were high (>87%) for diagnosing pilocytic astrocytoma and ependymomas, the 2 most common diagnoses in our cohort. Moreover, PA and ependymoma tumors had the smallest 95% CIs, suggesting reliability in the diagnosis of these 2 types of tumors. This was especially true for PA, in which the lower 95% CI limit for sensitivity was 76%, and for PPV, it was 82%.

After analyzing results from the initial flow chart created on the basis of more recently published literature, we modified it to improve diagnostic accuracy. Our modifications (see Figs 1 and 4 for comparison) successfully improved the sensitivity coefficient for identification of AT/RTs to 75%, but the confidence interval remained wide. The second modification to flow chart sequence 312 made possible the identification of most cases of medulloblastoma group 3 or 4, with fair-to-good sensitivity (61%–91%) and PPV (57%–88%) and good-to-excellent specificity (86%–96%) and NPV (88%–97%). The modified flow chart (Fig 4) proved to be more clinically relevant. The modified flow chart proved capable of discriminating AT/RTs, ependymomas, medulloblastomas SHH, medulloblastoma groups 3 and 4, and PA, which together constitute 90.5% of tumors in our cohort. Clinically, the flow chart demonstrates great performance in ruling out group 3 or 4 medulloblastomas, PAs, and ependymomas and ruling in AT/RTs.

However, when it came to correctly identifying WNT medulloblastoma (numeric sequence 412, Fig 2), diagnostic accuracy was poor. In the predesigned flow chart, the authors designated a tumor in the pontocerebellar angle/foramen of Luschka with high cellularity (ie, low ADC) and patient age older than 3 years as suggestive of WNT. The rationale was that the cellular path of embryologic precursors, which can transform into neoplastic WNT cells, arises from the fourth ventricle down and laterally into the foramen of Luschka.7 The only other tumor with striking diffusion restriction in the Luschka area is AT/RT, but this is typical of younger children.23 These results can be explained by several factors: the small number of WNT tumors present in our series (10% of all medulloblastomas), most cases in our series being in the fourth ventricle (which is understandable given that the path of the WNT cells is thought to start from the fourth ventricle), and the presence of anaplastic ependymomas showing diffusion restriction (therefore simulating WNT medulloblastoma on imaging).24 More recently, a study of a larger cohort of WNT medulloblastomas has shown that they are not as lateralizing as previously reported in smaller cohorts.25

This study has some limitations, the main one being its retrospective nature. However, we controlled potential biases by doing a blinded review of images by only including cases with images obtained before surgical intervention and creating the baseline flow chart before data collection. Another important limitation is the relatively small number of cases for some types of tumor, which explains the larger confidence intervals for certain tumors. Nevertheless, many pediatric cerebellar tumors are relatively rare, and this is perhaps one of the largest cohorts available in the literature.26 Moreover, we were able to gather a large enough cohort to allow diagnostic accuracy tests for the most common types of pediatric cerebellar tumors, with reliable results for most diagnoses. Because this was planned as a validation study, we consider it successful in providing results that show that the modified flow chart can be used, is reliable, and has clinical applicability.

More research is still desired, with a larger consistency analysis evaluating results from multiple blinded readers. A larger prospective study would be needed to evaluate the diagnostic efficacy of the modified flow chart with higher precision. Such a study could provide an initial decision model for potential deep learning studies. Artificial intelligence is already being used to predict the molecular profile of brain tumors, most commonly in adult populations, but with recent important studies emerging in pediatric populations.27,28 The main limitation for the application of machine learning in posterior fossa tumors may be the identification of tumor location,29 because we know that signal characteristics (which reflect at least partially histologic appearances) can be similar for different molecular groups with similar tissue features. Currently, artificial intelligence is not able to differentiate tumors with the necessary level of precision, though this may be possible in the future.

CONCLUSIONS

A flow chart for the diagnosis of posterior fossa tumors in children has been validated through a retrospective analysis of 148 patients with confirmed diagnoses. On the basis of analysis of these results, the predesigned flow chart was accurate in identifying most diagnoses, and with our subsequent modifications, the overall accuracy improved. The modified flow chart showed a good likelihood ratio for most of the histologic and molecular groups of tumors. Furthermore, it may offer an important starting point for prospective analysis using machine learning techniques. As new molecular subgroups emerge in the classification of pediatric brain tumors, there is the potential for further modifications to the flow chart to aid in diagnosis.

Footnotes

  • Disclosures: Ulrike Löbel—UNRELATED: Employment: Great Ormond Street Hospital; Travel/Accommodations/Meeting Expenses Unrelated to Activities Listed: European Course in Pediatric Neuroradiology, money paid to individual author. Juan S. Martin-Saavedra—UNRELATED: Employment: The Children's Hospital of Philadelphia, Comments: This project was done while I was working as a postdoctoral research fellow. Sebastian S. Toescu—RELATED: Grant: Great Ormond Street Hospital Children's Charity, Comments: I am funded by the Great Ormond Street Hospital Children's Charity and am an Honorary Research Fellow of the Royal College of Surgeons of England. All research at Great Ormond Street Hospital National Health Service Foundation Trust and the University College London Great Ormond Street Institute of Child Health is made possible by the National Institute of Health Research Great Ormond Street Hospital Biomedical Research Center.* Miriam H. Tsunemi—UNRELATED: Employment: Medical School of Botucatu-São Paulo State University. Kshitij Mankad—UNRELATED: Employment: Great Ormond Street Hospital, Comments: This is my regular place of work. I am salaried; Expert Testimony: medicolegal work, Comments: I offer expert testimony for cases on an ad hoc basis; Payment for Lectures Including Service on Speakers Bureaus: honorarium received from Siemens and Novartis for lecturing. Thomas S. Jacques—UNRELATED: Board Membership: Repath Ltd and Neuropath Ltd, Comments: I am a director of Repath Ltd and Neuropath Ltd; Employment: Repath Ltd, Neuropath Ltd, Comments: I am a director of Repath Ltd and Neuropath Ltd; Expert Testimony: I undertake expert witness work for Her Majesty's Courts; Grants/Grants Pending: The Brain Tumor Charity, Children with Cancer UK, Great Ormond Street Hospital Children's Charity, Olivia Hodson Cancer Fund, Cancer Research UK, and the National Institute of Health Research*; Payment for Lectures Including Service on Speakers Bureaus: Bayer, Comments: I have been invited to give a lecture organized by Bayer; Royalties: Elsevier; Other: Wiley, Comments: I am editor-in-chief of Neuropathology and Applied Neurobiology. *Money paid to the institution.

References

  1. 1.↵
    2. Chhabda S,
    3. Carney O,
    4. D'Arco F, et al
    . The 2016 World Health Organization Classification of Tumours of the Central Nervous System: what the paediatric neuroradiologist needs to know. Quant Imaging Med Surg 2016;6:486–89 doi:10.21037/qims.2016.10.01 pmid:27942466
    CrossRefPubMed
  2. 2.↵
    2. Louis DN,
    3. Perry A,
    4. Reifenberger G, et al
    . The 2016 World Health Organization Classification of Tumors of the Central Nervous System: a summary. Acta Neuropathol 2016;131:803–20 doi:10.1007/s00401-016-1545-1 pmid:27157931
    CrossRefPubMed
  3. 3.↵
    2. Taylor MD,
    3. Northcott PA,
    4. Korshunov A, et al
    . Molecular subgroups of medulloblastoma: the current consensus. Acta Neuropathol 2012;123:465–72 doi:10.1007/s00401-011-0922-z pmid:22134537
    CrossRefPubMed
  4. 4.↵
    2. Ramaswamy V,
    3. Remke M,
    4. Bouffet E, et al
    . Risk stratification of childhood medulloblastoma in the molecular era: the current consensus. Acta Neuropathol 2016;131:821–31 doi:10.1007/s00401-016-1569-6 pmid:27040285
    CrossRefPubMed
  5. 5.↵
    2. Nowak J,
    3. Nemes K,
    4. Hohm A, et al
    . Magnetic resonance imaging surrogates of molecular subgroups in atypical teratoid/rhabdoid tumor. Neuro Oncol 2018;20:1672–79 doi:10.1093/neuonc/noy111 pmid:30010851
    CrossRefPubMed
  6. 6.↵
    2. Pajtler KW,
    3. Witt H,
    4. Sill M, et al
    . Molecular classification of ependymal tumors across all CNS compartments, histopathological grades, and age groups. Cancer Cell 2015;27:728–43 doi:10.1016/j.ccell.2015.04.002 pmid:25965575
    CrossRefPubMed
  7. 7.↵
    2. Patay Z,
    3. DeSain LA,
    4. Hwang SN, et al
    . MR imaging characteristics of wingless-type-subgroup pediatric medulloblastoma. AJNR Am J Neuroradiol 2015;36:2386–93 doi:10.3174/ajnr.A4495 pmid:26338912
    Abstract/FREE Full Text
  8. 8.↵
    2. Perreault S,
    3. Ramaswamy V,
    4. Achrol AS, et al
    . MRI surrogates for molecular subgroups of medulloblastoma. AJNR Am J Neuroradiol 2014;35:1263–69 doi:10.3174/ajnr.A3990 pmid:24831600
    Abstract/FREE Full Text
  9. 9.↵
    2. D'Arco F,
    3. Culleton S,
    4. De Cocker LJL, et al
    . Current concepts in radiologic assessment of pediatric brain tumors during treatment, Part 1. Pediatr Radiol 2018;48:1833–43 doi:10.1007/s00247-018-4194-9 pmid:29980859
    CrossRefPubMed
  10. 10.↵
    2. Tamrazi B,
    3. Mankad K,
    4. Nelson M, et al
    . Current concepts and challenges in the radiologic assessment of brain tumors in children, Part 2. Pediatr Radiol 2018;48:1844–60 doi:10.1007/s00247-018-4232-7 pmid:30215111
    CrossRefPubMed
  11. 11.↵
    2. D'Arco F,
    3. Khan F,
    4. Mankad K, et al
    . Differential diagnosis of posterior fossa tumours in children: new insights. Pediatr Radiol 2018;48:1955–63 doi:10.1007/s00247-018-4224-7 pmid:30120502
    CrossRefPubMed
  12. 12.↵
    2. von Elm E,
    3. Altman DG,
    4. Egger M, et al
    . STROBE Initiative. The Strengthening the Reporting of Observational Studies in Epidemiology (STROBE) statement: guidelines for reporting observational studies. Epidemiology 2007;18:800–04 doi:10.1097/EDE.0b013e3181577654 pmid:18049194
    CrossRefPubMed
  13. 13.↵
    2. McGee S
    . Simplifying likelihood ratios. J Gen Intern Med 2002;17:646–49 doi:10.1046/j.1525-1497.2002.10750.x pmid:12213147
    CrossRefPubMed
  14. 14.↵
    2. Srinivasan VM,
    3. Ghali MG,
    4. North RY, et al
    . Modern management of medulloblastoma: molecular classification, outcomes, and the role of surgery. Surg Neurol Int 2016;7:S1135–41 doi:10.4103/2152-7806.196922 pmid:28194300
    CrossRefPubMed
  15. 15.↵
    2. Kuzan-Fischer CM,
    3. Juraschka K,
    4. Taylor MD
    . Medulloblastoma in the molecular era. J Korean Neurosurg Soc 2018;61:292–301 doi:10.3340/jkns.2018.0028 pmid:29742881
    CrossRefPubMed
  16. 16.↵
    2. Raybaud C,
    3. Ramaswamy V,
    4. Taylor MD, et al
    . Posterior fossa tumors in children: developmental anatomy and diagnostic imaging. Childs Nerv Syst 2015;31:1661–76 doi:10.1007/s00381-015-2834-z pmid:26351220
    CrossRefPubMed
  17. 17.↵
    2. Poretti A,
    3. Meoded A,
    4. Huisman TA
    . Neuroimaging of pediatric posterior fossa tumors including review of the literature. J Magn Reson Imaging 2012;35:32–47 doi:10.1002/jmri.22722 pmid:21989968
    CrossRefPubMed
  18. 18.↵
    2. Treisman DM,
    3. Li Y,
    4. Pierce BR, et al
    . Sox2+ cells in sonic hedgehog-subtype medulloblastoma resist p53-mediated cell-cycle arrest response and drive therapy-induced recurrence. Neurooncol Adv 2019;11:vdz027 doi:10.1093/noajnl/vdz027 pmid:31763624
    CrossRefPubMed
  19. 19.↵
    2. Wang J,
    3. Garancher A,
    4. Ramaswamy V, et al
    . Medulloblastoma: from molecular subgroups to molecular targeted therapies. Annu Rev Neurosci 2018;41:207–32 doi:10.1146/annurev-neuro-070815-013838 pmid:29641939
    CrossRefPubMed
  20. 20.↵
    2. Drezner NL,
    3. Packer RJ
    . The impact of molecular analysis on the survival of children with embryonal tumors. Transl Pediatr 2016;51:5–8 doi:10.3978/j.issn.2224-4336.2015.11.01 pmid:26835399
    CrossRefPubMed
  21. 21.↵
    2. Ho B,
    3. Johann PD,
    4. Grabovska Y, et al
    . Molecular subgrouping of atypical teratoid/rhabdoid tumors (ATRT): a reinvestigation and current consensus. Neuro Oncol 2020;22:613–24 doi:10.1093/neuonc/noz23531889194 pmid:31889194
    CrossRefPubMed
  22. 22.↵
    2. Venneti S
    . Integrating ependymoma molecular subgroups into clinical trials. Neuro Oncol 2019;21:1219–20 doi:10.1093/neuonc/noz132 pmid:31402383
    CrossRefPubMed
  23. 23.↵
    2. Meyers SP,
    3. Khademian ZP,
    4. Biegel JA, et al
    . Primary intracranial atypical teratoid/rhabdoid tumors of infancy and childhood: MRI features and patient outcomes. AJNR Am J Neuroradiol 2006;27:962–71 pmid:6687525
    Abstract/FREE Full Text
  24. 24.↵
    2. Northcott PA,
    3. Dubuc AM,
    4. Pfister S, et al
    . Molecular subgroups of medulloblastoma. Expert Rev Neurother 2012;12:871–84 doi:10.1586/ern.12.66 pmid:22853794
    CrossRefPubMed
  25. 25.↵
    2. Stock A,
    3. Mynarek M,
    4. Pietsch T, et al
    . Imaging characteristics of wingless pathway subgroup medulloblastomas: results from the German HIT/SIOP-Trial cohort. AJNR Am J Neuroradiol 2019;40:1811–17 doi:10.3174/ajnr.A6286 pmid:31649159
    Abstract/FREE Full Text
  26. 26.↵
    2. Hanzlik E,
    3. Woodrome SE,
    4. Abdel-Baki M, et al
    . A systematic review of neuropsychological outcomes following posterior fossa tumor surgery in children. Childs Nerv Syst 2015;31:1869–75 doi:10.1007/s00381-015-2867-3 pmid:26351236
    CrossRefPubMed
  27. 27.↵
    2. Iv M,
    3. Zhou M,
    4. Shpanskaya K, et al
    . MR imaging-based radiomic signatures of distinct molecular subgroups of medulloblastoma. AJNR Am J Neuroradiol 2019;40:154–61 doi:10.3174/ajnr.A5899 pmid:30523141
    Abstract/FREE Full Text
  28. 28.↵
    2. Sotoudeh H,
    3. Shafaat O,
    4. Bernstock JD, et al
    . Artificial intelligence in the management of glioma: era of personalized medicine. Front Oncol 2019;9:768 doi:10.3389/fonc.2019.00768 pmid:31475111
    CrossRefPubMed
  29. 29.↵
    2. Tang TT,
    3. Zawaski JA,
    4. Francis KN, et al
    . Image-based classification of tumor type and growth rate using machine learning: a preclinical study. Sci Rep 2019;9:12529 doi:10.1038/s41598-019-48738-5 pmid:31467303
    CrossRefPubMed
  • Received May 22, 2020.
  • Accepted after revision November 23, 2020.
