Intravenous 3D Digital Subtraction Angiography in the Diagnosis of Unruptured Intracranial Aneurysms

Technique and Representative Cases

From August 2006 to December 2006, IV 3D DSA was performed in 29 outpatients (10 men, 19 women; mean age, 58.8 ± 12.4 years) who had undergone time-of-flight MR angiography (MRA) suggestive of unruptured intracranial aneurysms. With IV 3D DSA, intracranial aneurysms were recognized in 11 patients (internal carotid artery, 7 patients; anterior communicating artery, 1 patient; middle cerebral artery, 1 patient; basilar artery, 1 patient; vertebral artery, 1 patient), but not in 18 patients.

Representative Cases

Case 1: A 72-year-old woman.

MRA was suggestive of an aneurysm in the right internal carotid artery (Fig 1A). With volume rendering images of IV 3D DSA, the aneurysm and its relationship with the surrounding arterial branches were depicted (Fig 1B). The size of the aneurysm could be measured with MIP (Fig 1C). She underwent additional intra-arterial (IA) 3D DSA due to a proposal of surgical treatment. IA 3D DSA was performed with the injection of 15 mL of nonionic contrast medium (Iopamiron 300; Nihon Schering, Osaka, Japan) into the right common carotid artery at a rate of 3 mL/s. With volume rendering images of IA 3D DSA, the aneurysm was depicted in higher spatial resolution, and small vessels surrounding the aneurysm were revealed (Fig 1D).

• Download figure
• Open in new tab
• Download powerpoint

Fig 1.

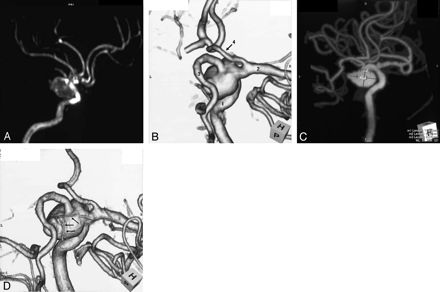

MRA time-of-flight image (case 1). A, An aneurysm in the right internal carotid artery was suggested. B, Volume rendering image of IV 3D DSA (case 1). The aneurysm and its relationship with the surrounding arterial branches were depicted. 1 indicates internal carotid artery; 2, middle cerebral artery; 3, posterior cerebral artery; 4, A1 segment of the anterior cerebral artery. C, MIP of IV 3D DSA (case 1). The size of the aneurysm was 14.7 × 9.1 mm for the aneurysm sack and 5.5 mm for the neck. D, Volume rendering images of IA 3D DSA (case 1). The aneurysm was depicted in higher spatial resolution, and small vessels surrounding the aneurysm were revealed (arrows).

Case 2: A 73-year-old man.

MRA was suggestive of a small aneurysm in the anterior communicating artery (Fig 2A). With volume rendering images of IV 3D DSA, a small aneurysm was recognized and the surrounding arterial branches were depicted (Fig 2B). The aneurysm measured with MIP (Fig 2C) was so small that additional IA DSA was not performed.

• Download figure
• Open in new tab
• Download powerpoint

Fig 2.

MRA time-of-flight image (case 2). A, A small aneurysm in the anterior communicating artery was suggested. B, Volume rendering images of IV 3D DSA (case 2). A small aneurysm was recognized, and the surrounding arterial branches were depicted. C, MIP of IV 3D DSA (case 2). The size of the aneurysm was 3.2 × 2.2 mm for the aneurysm sack and 3.2 mm for the neck.

Case 3: A 67-year-old woman.

MRA was suggestive of a small aneurysm in the left middle cerebral artery (Fig 3A), but it was not recognized with volume rendering images or MIP of IV 3D DSA (Fig 3B, -C). The suggested lesion was thought to be the curved portion of the M1 segment of the left middle cerebral artery.

• Download figure
• Open in new tab
• Download powerpoint

Fig 3.

MRA time-of-flight image (case 3). A, A small aneurysm in the left middle cerebral artery was suggested. B, Volume rendering images of IV 3D DSA (case 3). The suggested aneurysm was not recognized. The suggested lesion was thought to be the curved portion of the M1 segment of the left middle cerebral artery. C, MIP of IV 3D DSA (case 3). The suggested aneurysm was not recognized.

Case 4: A 45-year-old man.

MRA was suggestive of a small aneurysm in the anterior communicating artery (Fig 4A), but it was not recognized with volume rendering images or MIP of IV 3D DSA (Fig 4B, -C). The suggested lesion was thought to be the curved portion of the anterior communicating artery.

• Download figure
• Open in new tab
• Download powerpoint

Fig 4.

MRA time-of-flight image (case 4). A, A small aneurysm in the anterior communicating artery was suggested. B, Volume rendering images of IV 3D DSA (case 4). The suggested aneurysm was not recognized. The suggested lesion was thought to be the curved portion of the anterior communicating artery. C, MIP of IV 3D DSA (case 4). The suggested aneurysm was not recognized.

Discussion

The major advantage of IV DSA is the ability to obtain arteriograms relatively noninvasively through an IV injection of contrast medium, hence reducing the risk and cost of standard arterial catheterization. IV DSA has been used in some cases for the less invasive examination of cerebral, abdominal, and peripheral arteries³; however, because these vessels are not adequately demonstrated in all cases, intra-arterial DSA is mainly being performed.² Because of progress in high-speed rotation of the C-arm and the technique of high-speed acquisition of images, rotational angiography can be performed with a high resolution.^4,5 The spatial resolution and sensitivity of 3D images of our system are excellent because it can obtain 200 projection images in 1 acquisition and because the image intensifier has a high conversion factor (40 {cd/m²}/{μ G y/s}) and high contrast ratio (30:1 at 10% area contrast). These developments in DSA devices make IV 3D DSA possible. By manipulation of the 3D DSA data, lesions suggested on MRA can be depicted precisely in various ways. Volume rendering images of IV 3D DSA were more effective in demonstrating the relationship between the aneurysm and the adjacent vessels than MIP imaging.⁶ For examination of the existence of small aneurysms and for analysis of the size of aneurysms and vessels, MIP produced from the original nonthreshold 3D data was feasible.⁶

When data were transferred to the personal computer for reconstruction, the matrix size was transformed from 512 × 512 to 256 × 256 by voxel addition. This procedure is necessary for better contrast resolution because the contrast medium is diluted by a much larger volume of blood in IV 3D DSA.² Therefore, compared with IA 3D DSA, the spatial resolution of IV 3D DSA is inferior, especially in the demonstration of small vessels; however, we think that IV 3D DSA has enough quality, at least as “the second check” of unruptured intracranial aneurysms suggested on MRA, even though small perforators cannot be depicted precisely. In our series, only 3 patients needed to undergo IA 3D DSA additionally due to a proposal for surgical treatment. As information about surgical treatment, IV 3D DSA was not inferior to IA 3D DSA in all 3 patients.

In the field of neurosurgery, 3D CTA is the most available method for the IV evaluation of cerebrovascular lesions.⁷ Recent studies have suggested that 3D CTA is equal or superior to conventional angiography in characterizing aneurysms for surgical planning.⁸ Neurosurgeons can use 3D CTA more easily than IV 3D DSA because they are accustomed to using a helical CT scanner that can perform multipurposely.⁷ Despite some disadvantages, we think that IV 3D DSA may be more suitable for preoperative study of endovascular treatment than 3D CTA, because the question of whether a working view for endovascular treatment is reproduced on the C-arm can be checked with IV 3D DSA.⁶

IV 3D DSA can be performed more quickly and safely than conventional angiography, especially in outpatients, without the risk and cost of arterial catheterization. IV DSA is generally a very safe procedure with low morbidity,² but there have been a few descriptions of the extravasation of contrast material during IV DSA because of its high rate of injection.⁹ This complication occurs in approximately 5.2%, with an infusion rate of 14 mL/s.¹⁰ In our series, the rate was adjusted to 9 mL/s, which was less than in Pinto et al¹⁰, and we did not experience extravasation of contrast material during IV 3D DSA, or other complications.

Conclusion

With the recent progress in DSA devices, we could perform IV 3D DSA less invasively in the field of neuroradiology. Despite some disadvantages, IV 3D DSA can be used as an alternative method for imaging unruptured intracranial aneurysms suspicious on MRA.
