Quantitative Analysis of the Effects of Physiologic Brain Motion on Point-Resolved Spectroscopy

Methods

Theory

The phase of an excited magnetization with time-varying imaging gradient pulses is shown in the equation below: where φ(t) indicates phase of magnetization packet at time t; γ, gyromagnetic ratio; G(t), gradient at time t; and z(t), position of magnetization packet at time t.

The z(t) term can be expanded by a Taylor series, and therefore: where φ(t) indicates phase of magnetization packet at time t; γ, gyromagnetic ratio; G(t), gradient at time t; z(t), position of magnetization packet at time t; V, velocity; A, acceleration; and P = pulsatility.

If phase differences due to motion are minimized, less signal intensity attenuation will occur and, therefore, more accurate measurements will be obtained.

The PRESS sequence uses a 90° radio-frequency (RF) pulse for excitation and two 180° refocusing RF pulses for voxel selection and generation of spectral data (Fig 1). Around each of the 180° refocusing pulses, paired dephase-rephase spoiler gradients are applied to remove any spurious signal intensity generated by RF inhomogenieties. Any motion that occurs during the acquisition might lead to random phase shifts and signal intensity variation in resultant spectral data. The design of the PRESS pulse sequence as shown in Fig 1 has an even-echo rephrasing configuration and is analogous to even-echo rephasing in MR imaging. It is well known that even echo MR images are less susceptible to flow and motion artifacts.10 Thus, metabolite concentrations determined by using the PRESS sequence should be less affected by flow and motion, compared with the STEAM sequence.9

• Download figure
• Open in new tab
• Download powerpoint

Fig 1.

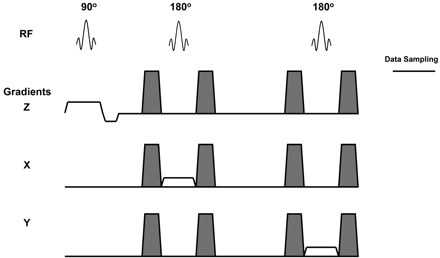

Schematic representation of the PRESS sequence used to acquire spectral data. The unshaded gradients pulsed are applied in the x, y, and z axes for voxel selection. The shaded gradient pulses are dephase-rephase gradients, which remove the spurious signal intensity generated by RF inhomogeneities. The 90° and 180° RF pulses are indicated. The time window for data sampling is also indicated.

MR Spectroscopy

Part I: To Demonstrate the Effect of Brain Motion on the Global Phase of Water in the Basal Ganglia.

The purpose of the first part of the study was to assess global phase change as a function of physiologic brain motion. This was accomplished by acquiring cardiac gated spectral data at various time delays from the R wave throughout the cardiac cycle from a voxel placed in the region of the left basal ganglia (Fig 2). In the first group of 10 subjects, spectra were obtained by using the PRESS sequence (2400–2600/135/16 [TR/TE/Nex]; bandwidth, 1000 Hz; 2048 data points) without water suppression. The start of the sequence was synchronized with every third R wave of the cardiac cycle in each subject by using electronic cardiac gating. Thus, the length of the repetition time (TR) was 3 R–R intervals. The water signal intensity data were acquired at 75-millisecond increments from the time of the R wave up to a delay of 750 milliseconds after the R wave. For each increment after the R wave, a global phase correction was performed by using the manufacturer’s provided spectral processing software. The mean global phase was calculated as the average of the global phase correction for all time increments. At each 75-millisecond increment, a global phase difference (global phase for the time increment minus mean global phase) was calculated.

• Download figure
• Open in new tab
• Download powerpoint

Fig 2.

T2-weighted axial image demonstrating voxel placement in the region of the left basal ganglia.

Part II: Water-Suppressed Acquisition with and without Cardiac Gating.

In the second group of 10 subjects, spectra were obtained from the left basal ganglia with and without cardiac gating by using the PRESS sequence. At each session, imaging was performed and the cardiac waveform was monitored to determine the mean R–R interval for the subject.

1. For the cardiac-gated, water-suppressed PRESS acquisition (2400–2600/135/256), the sequence was initiated at 400 milliseconds after the R wave. At 400 milliseconds, water suppression RF pulses, as well as gradients along the 3 orthogonal axes, were applied to dephase the water signal intensity. This process required 260 milliseconds, so the subsequent voxel selection occurred 660 milliseconds after the R wave.

2. For the nongated, water-suppressed PRESS acquisition a TR equal to 3 R–R intervals was used.

The metabolite concentrations were determined by using manufacturer supplied spectroscopy processing software, which determined the area under each of the metabolite peak in arbitrary units. To account for subject to subject variability in coil loading, the unsuppressed water signal intensity for each acquisition in every subject was normalized to the mean of the unsuppressed water signal intensity for all subjects. This normalization or correction factor was then divided into the concentration results for the corresponding subject. To remove any bias in the data due to the order of the spectral acquisition, gated and nongated acquisitions were alternated from subject to subject. Statistical analyses were performed by using 2-tailed Student t tests of 2 samples with unequal variance.

Results

No significant global phase difference was noted in the water signal intensity (Fig 3) for data acquired at various time increments from the R wave throughout the cardiac cycle by using the PRESS sequence. This is in contrast to the results obtained when data are acquired by using a STEAM sequence.9

• Download figure
• Open in new tab
• Download powerpoint

Fig 3.

Global phase difference for PRESS (solid line) as a function of gating delay from the R wave. Note that the global phase change of the water signal intensity is minimal throughout the cardiac cycle. The STEAM (dashed line) data are from previously published work.9

The results of previous work by using the STEAM sequence9 are included in Fig 3 to compare these directly with the results of motion effects on the PRESS sequence. The STEAM acquisitions used an optimal delay of 660 milliseconds from the R wave for the gated portion of that study. Because this same delay resulted in a negligible global phase difference for the PRESS sequence, the delay of 660 milliseconds was used for the PRESS water-suppressed acquisition. Representative spectra are shown (Fig 4), to illustrate the spectral quality of gated (A) and nongated (B) PRESS acquisitions. No difference in spectral quality between the 2 methods was observed.

• Download figure
• Open in new tab
• Download powerpoint

Fig 4.

PRESS spectra obtained from one subject, illustrating the spectral quality of gated (A) and nongated (B) acquisitions. This figure demonstrates that there is no difference in spectral quality between the 2 methods.

As shown in Table 1, no significant differences were found in metabolite areas or in SDs of the mean metabolite values obtained without and with cardiac gating for the PRESS acquisitions.

Discussion

In performing MR spectroscopy, STEAM was the favored technique for many years because data could be acquired at short echo times. The STEAM sequence, however, has been shown to be sensitive to physiologic motion.9 To improve the accuracy of metabolite measurements, it is desirable to use a sequence that is inherently less sensitive to physiologic motion. Because of the even-echo rephrasing effect10 inherent in the PRESS sequence design, we hypothesized that the PRESS technique would be less sensitive to physiologic motion than the STEAM technique.

Recently, Katz-Brull et al8 have used a different approach than ours to show that physiologic motion of the brain does not affect the single voxel PRESS technique at 3T.

They acquired spectral data in a frame-by-frame mode from 3 different regions (centrum semiovale, cerebellum, and occipital cortex) of the brain. Each frame was stored separately, and then data were processed by using 2 methods: all the frames were corrected with same zero order phase-correction factor and the frequency was not registered; each frame was individually phased and the frequency of the water signal intensity in all of the frames was registered to 4.7 parts per million. Following each processing method the frames were summed and the amplitude and width (at half height) of the creatine (Cr) signal intensity were determined. They found that there was no significant difference in Cr signal intensity amplitude or line width between the 2 methods.

It has been shown that motion is largest in the basal ganglia during systolic phase of the cardiac cycle.3 The movement of the basal ganglia is directed caudally, medially, and posteriorly. This is attributed to arterial expansion during the systolic phase of the cardiac cycle, resulting in expansion of the brain followed by venting of CSF to the spinal canal. During the diastolic phase of the cardiac cycle the process is reversed. Because movement of the basal ganglia has been documented previously, this study compares data acquired from the basal ganglia with the PRESS and STEAM techniques.

As demonstrated in Fig 3, the deviation in global phase differences of water is relatively large at short delays from the R wave for the STEAM sequence. In contrast, across all delay times from the R wave, when the PRESS sequence was used, deviation in global phase differences of water is negligible. Hence, the nonwater-suppressed acquisition provided early indication that the PRESS sequence is inherently less sensitive to motion than the STEAM sequence.

As shown in Table 1, the use of cardiac gating did not result in any statistically significant differences in metabolite measurements. Furthermore, the P values for the individual metabolites (gated vs nongated) were lower with the STEAM sequence9 than with the PRESS sequence, which indicates that any differences in measurements by using STEAM were less likely due to chance. Therefore, STEAM is more sensitive to physiologic motion than PRESS.

The two 180° refocusing pulses used for voxel selection and generation of spectral data with PRESS may provide an effect analogous to even-echo rephasing in MR imaging. Even echoes on MR images are less susceptible to flow and motion.10 This may be the reason why the PRESS sequence is less affected by flow and motion compared with STEAM. In addition, at the same TE, PRESS will have higher (approximately √2) signal intensity to noise when compared with the STEAM sequence because PRESS uses 180° refocusing pulses to generate the spectral signal intensity.

Because of hardware limitations, this study was performed by using a long-TE (135 milliseconds) PRESS technique. As shown in Table 1, the data indicate that PRESS is inherently less sensitive to physiologic brain motion even with long TEs. With improvements in hardware performance for current MR systems, a short-TE PRESS sequence (comparable to STEAM) exists. On the basis of the results of this study, use of PRESS sequence is advocated given the decreased sensitivity to motion and inherently higher signal intensity to noise when compared with STEAM sequence. In this study the repetition time varied between subjects depending on their heart rate, which could result in higher SDs. Because the PRESS method is less susceptible to motion artifacts, one could eliminate cardiac gating and with the use of identical repetition times for all the subjects the SDs will be further reduced. This in turn would provide accurate quantitative results that will improve clinical efficacy of MR spectroscopy.

Conclusion

The effect of physiologic brain motion on proton spectroscopy is dependent on the pulse sequence used. The PRESS sequence is relatively insensitive to physiologic brain motion. The results of this study indicate that the PRESS sequence should be the method of choice when performing spectroscopy. It allows for more accurate measurements of metabolite concentrations, which in turn should improve clinical efficacy of in vivo proton spectroscopy.
