Abstract
BACKGROUND AND PURPOSE: The molecular characteristics of intracranial aneurysms are still poorly documented. A rabbit elastase aneurysm model has been helpful in the evaluation of devices and strategies involved in endovascular treatment of aneurysms. The goal of this project was to document the molecular changes, assessed by gene chip microarrays, associated with the creation of aneurysms in this model compared with the contralateral carotid artery.
MATERIALS AND METHODS: A microarray of rabbit genes of interest was constructed using rabbit nucleotide sequences from GenBank. Elastase-induced saccular aneurysms were created at the origin of the right common carotid artery in 4 rabbits. Twelve weeks after aneurysm creation, RNA was isolated from the aneurysm as well as the contralateral common carotid artery and used for microarray experiments. Reverse transcription-polymerase chain reaction (RT-PCR) was performed on 1 animal as a confirmatory test.
RESULTS: Ninety-six (46%) of 209 genes in the microarray were differentially expressed in the rabbit aneurysm compared with the contralateral common carotid artery. In general, differential gene expression followed specific molecular pathways. Similarities were found between rabbit aneurysms and human intracranial aneurysms, including increased metalloproteinase activity and decreased production of the extracellular matrix. RT-PCR results confirmed the differential expression found by the gene chip microarray.
CONCLUSIONS: The molecular characteristics of the rabbit elastase-induced saccular aneurysm are described. The rabbit aneurysm model shares some molecular features with human intracranial aneurysms. Future studies can use the rabbit model and the new rabbit gene chip microarray to study the molecular aspects of saccular aneurysms.
We are entering the genetic era of medicine, where ideas such as genetic screening and gene-directed therapy are becoming mainstream technologies. Genetic medicine may also extend to the field of intracranial aneurysms.1-5 However, genetic studies on intracranial aneurysms are limited because of the difficulty of obtaining tissue. Animal models with well-defined molecular characteristics may be of value in the study of the molecular pathophysiology of saccular aneurysms.
The rabbit elastase-induced saccular aneurysm model has been applied to the study of saccular aneurysms.6-9 In this model, saccular aneurysms are surgically created from the origin of the right common carotid artery using distal ligation of the artery and injection of elastase into the artery wall.9 The resultant aneurysms have a morphology and size similar to that of human intracranial aneurysms.8 These aneurysms are also histologically similar to human aneurysms in that they have lost their elastic membrane.8 Little is known about the molecular characteristics of these aneurysms.
The purpose of this study was to apply gene chip technology to delineate the molecular characteristics of saccular aneurysms in the rabbit model. Gene chip technology allows study of gene expression in hundreds of genes in many different molecular pathways. We initially created a rabbit gene chip microarray containing 209 genes that were each individually selected because of their relevance to vascular physiology or pathology. We applied this gene chip on 4 experimental aneurysms to compare the gene expression of tissue within the aneurysm cavity with that of the control, contralateral common carotid artery. We used reverse transcription-polymerase chain reaction (RT-PCR) as a confirmatory test to demonstrate the validity of the gene chip microarray results.
Materials and Methods
Selecting Genes for the Rabbit Gene Chip Microarray
We constructed a rabbit gene chip with the ability to detect differences in 209 genes (Table 1). To choose candidate genes, we initially searched the current literature on human intracranial aneurysms5,10-25 and abdominal aortic aneurysms.26-30 We identified approximately 400 genes of interest. These genes can be grouped into 7 molecular and physiologic themes, all relevant to vascular physiology and pathology: activation of the coagulation cascade,2,11,16 recruitment of inflammatory cells such as monocytes and macrophages,10,11 production of antioxidative genes,1-3,11,13,15,30-33 apoptosis of smooth muscle cells,12,34-37 production of proteolytic extracellular matrix enzymes,3,5,10,16,18,19,38,39 decreased production of the extracellular matrix,3,11,16,21-25,38 and activation of cell signaling cascades.10,12,26-29 We then searched GenBank to identify sequenced rabbit genes. Of the 400 genes of interest, we identified 209 rabbit genes that had been sequenced and posted on the GenBank data base. The microarray of oligonucleotides of interested genes was constructed commercially (Operon, Huntsville, Ala).
Genes that were included in the rabbit gene chip
Rabbit Aneurysm Creation
Elastase-induced, saccular aneurysms were created in New Zealand white rabbits (body weight, 3–4 kg) using the rabbit elastase model. The Mayo Foundation Institutional Animal Care and Use Committee approved all procedures before initiation of the study. Detailed procedures for aneurysm creation have been described in depth elsewhere.9 In brief, anesthesia was induced with an intramuscular injection of ketamine, xylazine, and acepromazine (75, 5, and 1 mg/kg, respectively). Using sterile technique, the right common carotid artery (RCCA) was exposed and ligated distally. A 1–2-mm beveled arteriotomy was made, and a 5F vascular sheath was advanced retrograde in the RCCA to a point approximately 3 cm cephalad to the origin of RCCA. A 3F Fogarty balloon was advanced through the sheath to the level of the origin of the RCCA with fluoroscopic guidance and was inflated with iodinated contrast material. Porcine elastase (Worthington Biochemical Corporation, Lakewood, NJ) was incubated within the lumen of the common carotid above the inflated balloon for 20 minutes, after which the catheter, balloon, and sheath were removed. The RCCA was ligated below the sheath entry site, and the incision was closed. Subjects underwent intra-arterial digital subtraction angiography at the time of sacrifice with a 5F diagnostic catheter placed into the brachiocephalic artery from a femoral approach.
Tissue Harvest
Tissue was harvested 12 weeks after aneurysm creation. At the time of tissue harvest, the animals were deeply anesthetized and then euthanized by an overdose injection of pentobarbital. The entire aneurysm (approximately 1 cm long) and the contralateral common carotid artery were dissected free from the surrounding tissues and were then immediately frozen in liquid nitrogen. None of the aneurysms had clotted off or ruptured. The frozen tissues were stored at −70°C until the tissues were ready for RNA extraction.
RNA Extraction
RNA was isolated from frozen tissues by using the RNeasy fibrous tissue mini kit (QIAGEN, Valencia, Calif). The quantity of the RNA was measured using spectrophotometry, and the integrity of the RNA was confirmed by electrophoretic separation using the Agilent 2100 Bioanalyzer (Agilent, Palo Alto, Calif).
Fluorescent cRNA Synthesis (In Vitro Transcription)
Total RNA (1 μg) was amplified and synthesized into 2 μg of complementary RNA (cRNA). The amplification technique was tested to confirm proportional amplification of each RNA strand. cRNA was then labeled with red and green fluorescent dyes for the purpose of the microarray experiment (Low RNA Input Fluorescent RNA Amplification kit; Agilent).
Fluorescent cRNA Hybridization Protocol
Two micrograms of the aneurysm cRNA (labeled with the fluorescent red tag) and 2 μg of the common carotid artery cRNA (labeled with the fluorescent green tag) were then mixed and hybridized to the microarray. The colors were switched and the hybridization was repeated in duplicate to control for the effect of the dye tag on hybridization.
Scanning
The microarray slides were then scanned, and the computer reported the intensity of the red and green fluorescent dyes for each spot on the microarray (GenePix 4000B; Molecular Devices, Sunnyvale, Calif). For example, a red spot would mean that the aneurysm messenger RNA (mRNA) dominates, a green spot would mean that the carotid artery mRNA dominates, and a mixed color spot would mean that the mRNA is equally represented.
RT-PCR
To validate the results obtained in the microarray, RT-PCR was performed on 1 of the rabbit tissue samples. RNA (100 ng) was reverse-transcribed to complementary DNA (cDNA) using Superscript III (Invitrogen, Carlsbad, Calif). PCR was performed with primers specific for caveolin, matrix metalloproteinase (MMP)-2, MMP-9, vascular cell adhesion molecule 1 (VCAM-1), endothelin-1, tissue inhibitor of metalloproteinase-2 (TIMP-2), and β-actin on a Thermocycler (Applied Biosystems, Foster City, Calif) by using PCR kit (Invitrogen).
Statistical Analyses
Analyses were done using the base-2 logarithm transform of the median signal intensity, and all analyses were conducted using SAS Version 9 statistical software (SAS Institute, Cary, NC). Normalization of the data were performed using 2-channel fastlo, a semiparametric approach that corrects for intensity-dependent effects developed by Eckel et al.40 The parametric component consisted of additive main effect for gene. The nonparametric component consisted of a set of nonparametric loess smoothers, one for each array, dye, and block combination. The normalized signal intensity for each observation was estimated by subtracting the predicted values obtained from the nonparametric component from the original base-2 logarithm transform of the median signal intensity.
To test for differential expression between aneurysm and the control arteries, a mixed-effects linear model was fit for each gene. The normalized expression values were the dependent variable in the mixed-effects linear models, array and dye were fit as fixed effect co-variates, and rabbit was included as a random effect. The “t” test statistics and corresponding P values, calculated from a linear contrast, were used as a measure of the mean change in expression between treatment groups relative to the variability. The genes were ranked according to their P values, and genes with a P value < .05 were used to identify pathways for further investigation.
Results
In the gene chip microarray experiment, 96 (46%) of 209 genes demonstrated statistically significant differential expression between the aneurysm tissue and the control contralateral carotid artery tissue (P < .05). Table 2 lists the 96 differentially expressed genes in decreasing order of statistical significance.
The 96 genes that had a statistically significant (P < .05) differential expression between the aneurysm and the control artery
Table 3 categorizes the genes into their respective molecular pathways. A few trends in rabbit aneurysm gene expression are recognizable from these data. The proteolytic enzymes are activated (11 of 12 genes), many of the extracellular matrix (ECM) genes are down-regulated (9 of 13 genes), and the smooth muscle genes are down-regulated (4 of 4 genes).
The differentially expressed genes are grouped into their respective molecular pathways

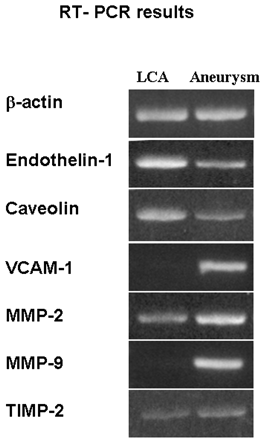

The RT-PCR results confirmed that VCAM-1, MMP-2, MMP-9, and TIMP-2 were all overexpressed in the aneurysm, whereas endothelin-1 and caveolin were underexpressed in the aneurysm (Fig 1). The RT-PCR–derived expression profile of these 6 genes matches the results of the gene chip microarray data.
RT-PCR data. The bands reveal that endothelin and caveolin are underexpressed in aneurysms, whereas VCAM-1, MMP-2, MMP-9, and TIMP-2 are overexpressed in aneurysms. β-Actin is the control that is equally expressed in both the aneurysm and the control.
Discussion
This study gives a gross picture of the molecular characteristics of the elastase-induced rabbit aneurysm. Proteolytic activity is markedly elevated above control tissue, with activation of metalloproteinases, while the production of the extracellular matrix and smooth muscle genes are inhibited. Variables that could produce these molecular changes include exposure to elastase, altered shear stress due to the new morphology of the arterial wall, and the surgical operation itself.
Human aneurysms display molecular changes similar to those seen in this animal model. In humans, aneurysm tissue metalloproteinases are activated,19,20,39 production of the extracellular matrix is inhibited,21-25 and smooth muscle cell production is significantly decreased as a result of apoptosis.34-36 Because of these molecular similarities between the experimental rabbit aneurysms and human intracranial aneurysms, it is possible that the rabbit aneurysm model could be used to study the molecular pathophysiology of saccular aneurysms.
To our knowledge, this is the first report ever to use a gene chip microarray that was specifically made from rabbit oligonucleotide sequences and the first to study the genetic profile of rabbit aneurysms. The RT-PCR results are consistent with the gene chip microarray data, suggesting that the differential expression found by the gene chip microarrays is reliable. Gene chip microarray technology is so sensitive that the slight difference in homology across species can lead to significant changes in microarray binding.41 Consequently, we believe that the use of human gene chip microarrays on animals such as rabbits should be avoided.
Other animal models for intracranial aneurysms have been used to study the molecular nature of aneurysms. Most of these studies have focused on individual genes.13,35,42-45 However, in a recent study similar to our own, human gene chip microarray technology was used on the swine model to classify the molecular character of the swine aneurysm.46 Although their study was innovative, their data were collected using human gene chips and thus have the potential of bias because of the imperfect homology of genes across species. Furthermore, in our opinion, the swine model does not resemble human aneurysms as well as the rabbit model does.8 For example, the aneurysm in the swine model contains an intact internal elastic lamina and tunica media and the venous pouch that forms the swine aneurysm thromboses spontaneously.
This study has several limitations. First, the rabbit genome is not yet fully elucidated, and some of the genes of interest in intracranial aneurysm pathology are not yet sequenced. Consequently, we were not able to construct a gene chip that contained every gene of known significance to intracranial aneurysm pathology. However, if a specific gene was not in the data base, there was usually a closely related gene that we could include in its place. Second, this study was performed on only 4 aneurysms. Fortunately, even this small number of subjects yielded results that showed statistically significant differential expression in 96 genes. This high yield of differential expression reveals the care that was taken in the selection of candidate genes for the gene chip. Third, the contralateral left carotid artery is imperfect as a control because the flow in this artery is increased after right common carotid artery occlusion. The advantages of the contralateral carotid as a control are that it is from the same animal and it is the same type of vessel as the vessel used to create the aneurysm (they are both from common carotid arteries). Fourth, these data reveal genetic expression at the RNA level. Because the cell regulates protein expression at the levels of both transcription and translation, RNA levels do not necessarily correlate with protein levels. Future proteomic studies are necessary to confirm the results of this study.
The rabbit, as a molecular model, will be a valuable tool in future studies. We can do controlled experiments on rabbit aneurysms that would not be feasible in humans. For example, we can modulate blood pressure in rabbits, modify the shape of the aneurysm in rabbits, or use various medications in rabbits and then determine the molecular effects of these changes by using the rabbit gene chip microarray. Future experiments can also focus on many of the new genes of interest revealed by this microarray study. For example, differentially expressed genes such as atrial natriuretic polypeptide, monocyte chemoattractant protein, endothelin, and peroxisome proliferator-activated receptors34,36,47 will be particularly interesting given their known function and their logical connection to intracranial aneurysms. In summary, by combining the advantages of the rabbit model and the gene chip microarray, we will be a step closer to attaining an understanding of the molecular biology of intracranial aneurysms.
Conclusions
The molecular characteristics of the rabbit elastase-induced saccular aneurysm are described. The rabbit aneurysm model shares some molecular features with human intracranial aneurysms, including increased metalloproteinase activity, decreased production of the extracellular matrix, and decreased production of smooth muscle associated genes. This knowledge will be helpful in future studies that use the rabbit model and the new rabbit gene chip microarray to study the molecular effects of controlled experiments.
Footnotes
This work was presented at the 44th Annual Meeting of the American Society of Neuroradiology; April 29–May 5, 2006; San Diego, Calif.
